Description

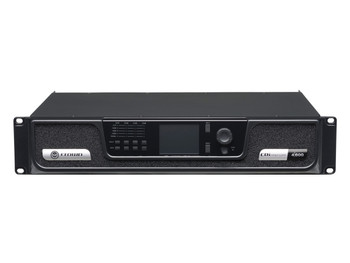

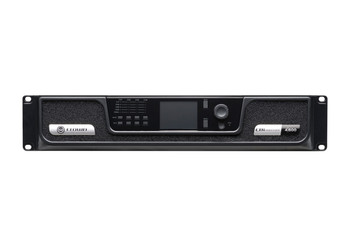

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200BL offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 4|1200BL is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The 4|1200BL also comes with BLU link, adding the ability to send and receive channels over HARMAN’s digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
Feature Comparison
| CDi DriveCore Model | Channels | Network Control | DSP | Control Port | BLU link |
| 2|300 | 2 |  Y | Y | Y | |
| 2|300BL | 2 | Y | Y | Y | Y |
| 4|300 | 4 | Y | Y | Y | |
| 4|300BL | 4 | Y | Y | Y | Y |
| 2|600 | 2 | Y | Y | Y | |
| 2|600BL | 2 | Y | Y | Y | Y |
| 4|600 | 4 | Y | Y | Y | |
| 4|600BL | 4 | Y | Y | Y | Y |
| 2|1200 | 2 | Y | Y | Y | |
| 2|1200BL | 2 | Y | Y | Y | Y |
| 4|1200 | 4 | Y | Y | Y | |
| 4|1200BL | 4 | Y | Y | Y | Y |
Output Power: Dual Mode - All Channels Driven
| CDi DriveCore Model | Channels | 2Ω | 4Ω | 8Ω | 16Ω | 70Vrms | 100Vrms |
| 2|300 / 2|300BL | 2 | 150W | 300W | 300W | 150W | 300W | 300W |
| 4|300 / 4|300BL | 4 | 150W | 300W | 300W | 150W | 300W | 300W |
| 2|600 / 2|600BL | 2 | 300W | 600W | 600W | 300W | 600W | 600W |
| 4|600 / 4|600BL | 4 | 300W | 600W | 600W | 300W | 600W | 600W |
| 2|1200 / 2|1200BL | 2 | 850W | 1200W | 1200W | 600W | 1200W | 1200W |
| 4|1200 / 4|1200BL | 4 | 850W | 1200W | 1200W | 600W | 1200W | 1200W |
Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)
Output Power: Bridge Mono Mode - All Channels Driven
| CDi DriveCore Model | 4Ω | 8Ω | 16Ω | 140Vrms | 200Vrms |
| 2|300 / 2|300BL | 300W | 600W | 600W | 600W | 600W |
| 4|300 / 4|300BL | 300W | 600W | 600W | 600W | 600W |
| 2|600 / 2|600BL | 600W | 1200W | 1200W | 1200W | 1200W |
| 4|600 / 4|600BL | 600W | 1200W | 1200W | 1200W | 1200W |
| 2|1200 / 2|1200BL | 1200W | 2400W | 2400W | 2400W | 2400W |
| 4|1200 / 4|1200BL | 1200W | 2400W | 2400W | 2400W | 2400W |
Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)
Specifications
- Digital Signal Processing 96kHz, 32-bit floating point
- Voltage Gain (at maximum level setting) 4/8Ω, 70Vrms and 100Vrms Operation 34dB
- Frequency Response (8Ω, 20Hz - 20kHz) ±0.25dB
- BLU link Signal-to-Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) >108dB
- Total Harmonic Distortion (at full rated power, from 20Hz - 20kHz) 0.35%
- Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) >104dB
- Intermodulation Distortion (60Hz and 7kHz at 4:1, from - 30dB to full rated power) ≤0.35%
- Damping Factor (20Hz to 100Hz) >1000
- Crosstalk (below rated power, 20Hz to 1kHz) >80dB
- Common Mode Rejection (20Hz to 1kHz, typical) >70dB
- DC Output Offset (with inputs shorted) ±10mV
- Input Impedance (Nominally balanced, nominally unbalanced) 10 kΩ balanced, 5 kΩ unblanced
- Maximum Input Level (Low Amp Gain Mode) +20dBU
- Required AC Mains (±10%) 100V – 240V~ 50/60Hz
- Cooling Continuously variable speed forced air, front-toback airflow
- Power Supply Connector 20A IEC connector, 100 – 240V
- Load Impedance Stereo/Dual Mode 2Ω - 16Ω; 70Vrms and 100Vrms
- Load Impedance Bridge Mono 4Ω - 16Ω; 140Vrms and 200Vrms
- Maximum Fan Noise (re dB SPL @ 1M) 54dBA
- Weight 20.1 lbs (9.12 kg
