Stereo Audio Attenuator & Monitor Controller
The SAT-2™ is a passive stereo audio device that provides you with a transparent level control wherever you may need it, either at the output of a pair of high-gain mic preamps, or between your recording interface and a pair of powered speakers as a compact desktop monitor controller.
 | Features
|
Ultra-quiet monitor controllerWhen using the SAT-2 as a monitor controller, simply connect it in between your playback device and a pair of powered speakers for an easy-access master volume control. Mute and mono switches allow you to silence the outputs or check mixes for mono phase compatibility, while a handy dim switch with adjustable level control allows you to temporarily lower the output volume without losing the main volume setting. |  |
 | Attenuation in the studioThe SAT-2 can also be used to attenuate signals before sending them to your audio interface, so you can drive your mic preamps hard for coloration without clipping the inputs of the digital audio converter. A high quality 4-pole rotary knob ensures consistent L-R tracking over the entire range of the trim pot, fully maintaining the left-right balance of stereo sources. |
SAT-2 Applications

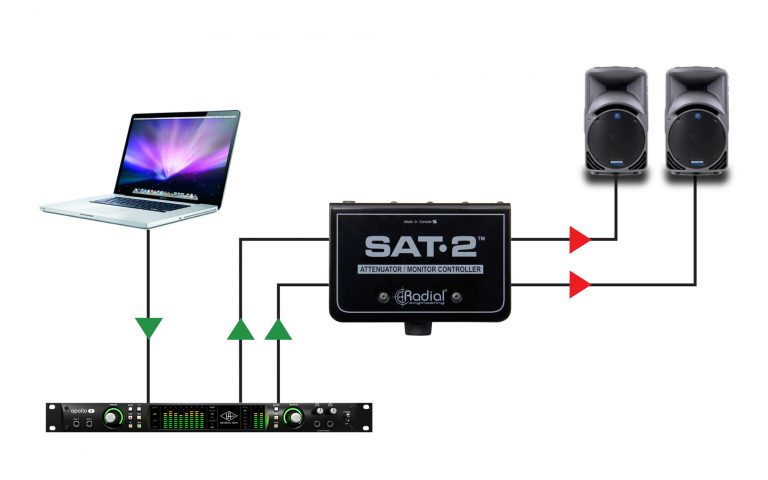

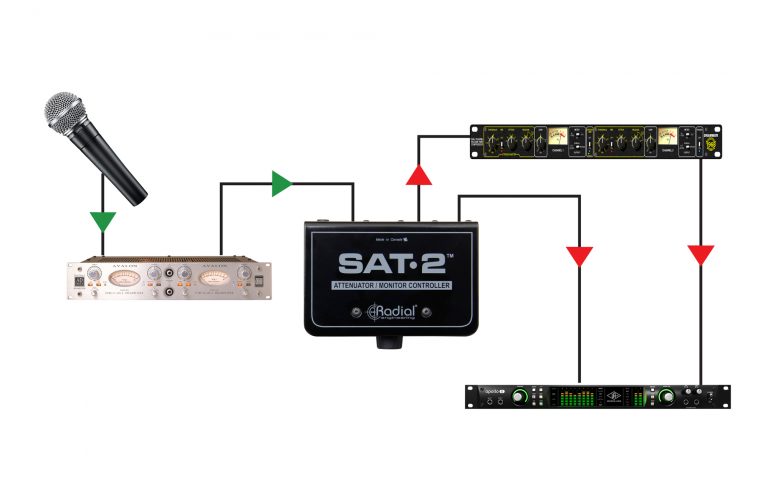

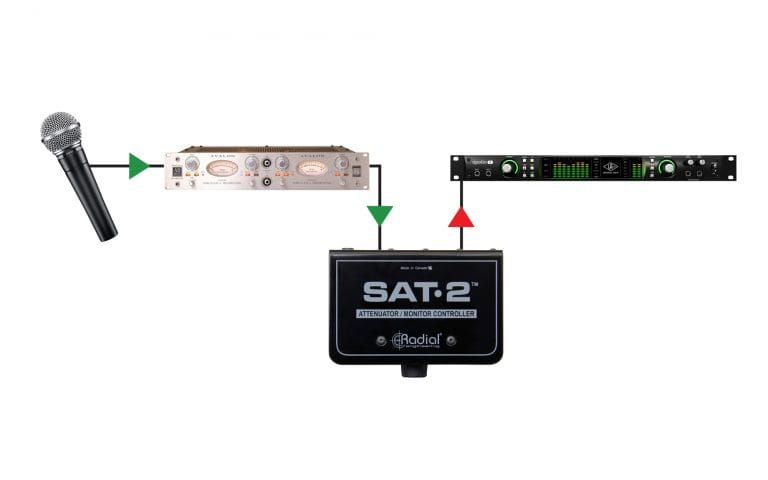

 Use the SAT-2 as a monitor controllerConnect between your audio interface and powered speakers, utilizing the level control as well as the dim and mute switches. |  Attenuate the output of a hot mic preamp or compressorUse the trim control on the SAT-2 to avoid overloading or clipping the inputs of your recording device, while retaining the character of your preamps cranked up to their sweet spot. |  Use the SAT-2 for parallel effects processingTake the output of a mic preamp into the SAT-2, engage the mono switch, and connect one of the SAT-2 outputs directly to your recording interface, and the other to an effects device and then to a second recording track. You can then adjust the blend between the two tracks in your DAW. |

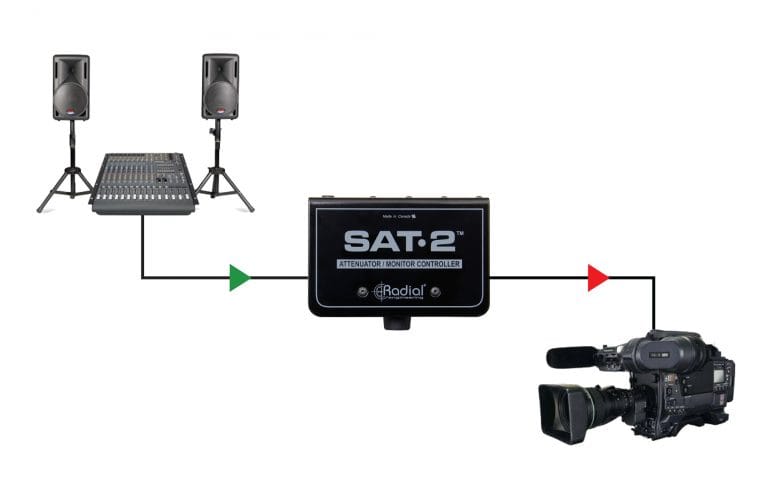

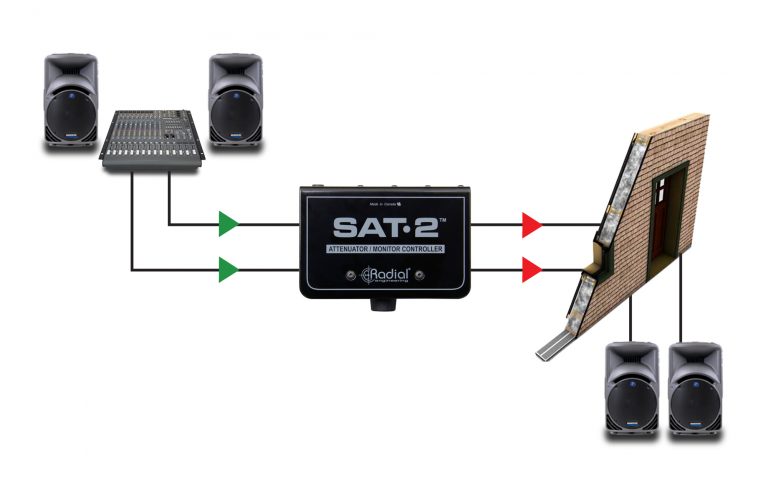

 Attenuate stereo outputs for live or broadcast useUse the SAT-2 to trim down the output of an aux on a mixing console and feed production audio to video cameras or field recorders. |  Add a level control to a multi-room PA systemInterface between the aux output of a PA mixer and powered speakers in another room in the venue, providing local volume control for each zone. |
Specifications
Specifications
- Audio circuit type: Passive audio signal path
- Number of channels: 2
- Frequency response: 20Hz to 20kHz
- Dynamic range: >141dB
- Gain: 0dB
- Total harmonic distortion: >0.0005% @ 0dBu
- Intermodulation Distortion: >0.001% @ 0dBu
- Phase Deviation: 0° @ 20Hz, 0° @ 1kHz, +2° @10kHz
- Input Impedance: 8 kΩ
- Output Impedance: 1.8 kΩ
- Common Mode Rejection Ratio: >80dB
- Noise: -115dBu
- Maximum Input: >+ 26dBu
Features
- Mono Sum, Level Control
- Input Connectors: XLR, 1/4"
- Output Connectors: XLR
General
- Construction: 14-gauge steel chassis and outer shell
- Size (L x W x D): 5" x 3.25" x 2" (12.7 x 8.3 x 5cm)
- Weight: 1.5lb (0.68kg)
- Shipping size (L x W x D): 6.4" x 4.25" x 3" (16.3 x 10.8 x 7.6cm)
- Shipping weight: 1.8lb (0.8kg)
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
Block Diagram
Graphs

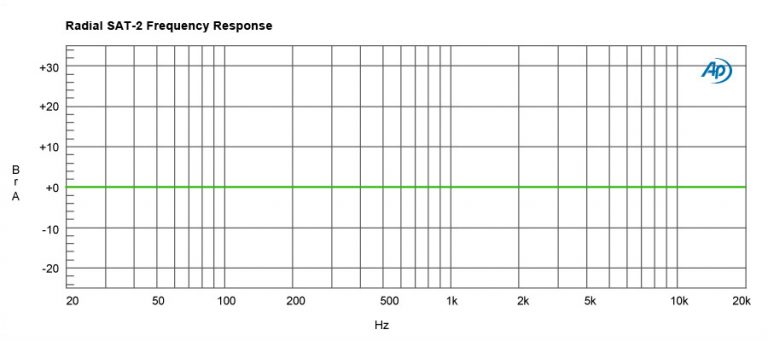

Frequency Response |
|||

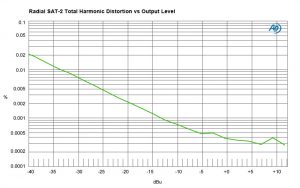

 THD vs Output |

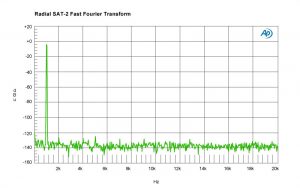

 Fast Fourier Transform |

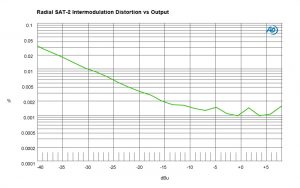

 IMD vs Output |

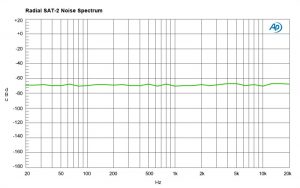

 Noise Spectrum |

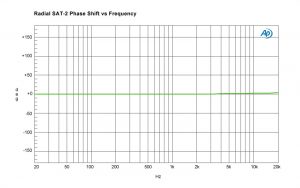

 Phase Shift vs Frequency |
|||
