Description

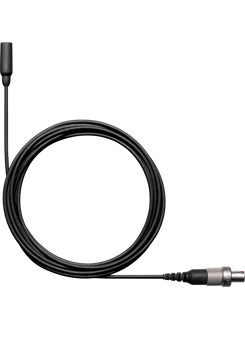

Cardioid lavalier microphone offers an interchangeable condenser and consists of a windscreen and a dual tie clip for 2 microphones. It features wide dynamic range and frequency response for accurate and balanced sound reproduction.
Features
- Cardioid polar pattern
- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Interchangeable cartridges that provide an optimal choice for each application
- Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
- Supplied snap-fit foam windscreen that controls breath noise and stays on securely
- Balanced, transformerless output for increased immunity to noise over long cable runs
- Supplied dual tie clip holds two microphones for dual miking applications
Specifications
Type Condenser (electret bias)
Frequency Response 50 to 17,000 Hz
Polar Pattern Cardioid
Output Impedance EIA rated at 150 Ω (180 Ω actual)
Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pascal*) –35.0 dB (17.0 mV)
*1 Pascal = 94 dB SPL
Max SPL (1kHz at 1%THD, 1 kΩ load) 124.2 dB
Equivalent Output Noise (A-weighted) 28.0 dB
Signal to Noise Ratio (referenced at 94 dB SPL) 66.0 dB
Dynamic Range at 1 kΩ load 96.2 dB
Power Requirements 11 to 52 Vdc phantom, 2.0 mA
Common Mode Rejection 45.0 dB minimum
Polarity Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
Operating Temperature Range -18° to 57° C (0° to 135° F)
Storage Temperature Range -29° to 74°C (–20° to 165° F)
Cable Shielded 1.2 meter (4 ft.) cable terminated with a 4-Pin Female Mini Connector (TA4F)
