RCA Straight Plugs

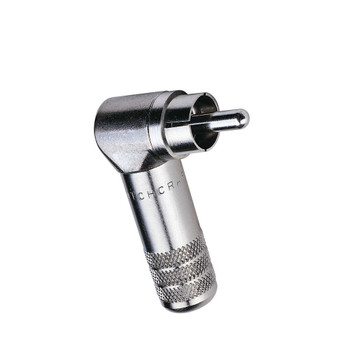

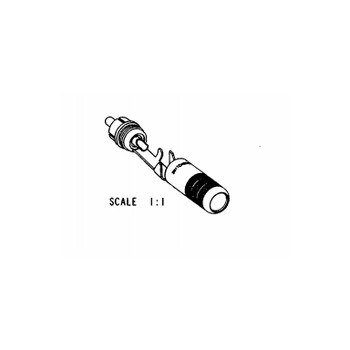

Switchcraft’s® straight RCA plugs (3502A) features an easy-to-assemble construction: a handle and plug assembly. The plug features a solid-pin design and large solder terminals that make termination faster and easier. The larger cable clamp and handle will accommodate a variety of cable sizes. Available in nickel or gold-plated plug bodies with nickel or black finish handles, this new RCA plug will save time and space in any application.
Specifications
Contact Resistance (typical *D.O.M.J.): < 0.020 ohms.
Dielectric Withstand Voltage: 500V AC (minimum).
Insulation Resistance @ 500V DC: 2,000 megohms (minimum).
Insulation Resistance (after MIL-STD-202 Salt Spray): 1,000 megohms (minimum).
Working Voltage: 250V AC, 140V DC.
Current Carry @ Working Voltage
(typical *D.O.M.J.): 6.0 AMPS.
Insert/Withdrawal Force: *D.O.M.J..
Temperature Range: -40° to + 85° Centigrade.
U.L. Component Recognition File No.: E118169.
Life: *D.O.M.J..
Maximum Cable Size: .285 inch diameter.
*D.O.M.J. Dependent On Mating Jack
MATERIALS
Pin: Copper alloy; nickel-plated or gold-plated.
Sleeve: Copper alloy; nickel-plated or gold-plated.
Handle: Copper alloy; nickel-plated or black epoxy finished.
Cable Clamp: C.R.S., electrotin-plated.
Insulator: Rigid plastic.
