Description

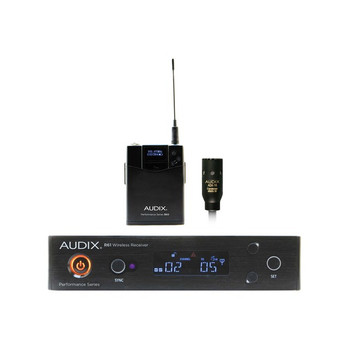

A value packed bodypack diversity wireless system featuring the ADX10 cardioid miniature condenser microphone.
The ADX10 is a lightweight, low profile mic designed for lavalier applications such as speech, presentation and theatrical production. With the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8 inches, the ADX10 has a natural sound with exceptional response that is resistant to feedback and easy to use.
Available Frequency Bands
- A = 522 MHz - 554 MHz
- B = 554 MHz - 586 MHz
Features
R41 Diversity Receiver
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies for quick, easy and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam
B60 L10 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter with ADX10 lavalier
- Durable metal housing
- 14 Hour run time - AA batteries
What's In The Box
- 1 x R41 32 MHz Diversity Receiver
- 1 x B60 Bodypack Transmitter with ADX10 Lavalier Microphone
- 2 x Antennas
- 1 x Audio Cable
- 1 x Clip
- 2 x AA Batteries
- 1 x Carrying Case
- 1 x Power Supply
- 1 x User Guide
- 1 x Rackmount Hardware
Specifications
R41/R42
- Frequency Range: 522 MHz – 554 MHz / 554 MHz - 586 MHz
- Bandwidth: 32 MHz
- Compatible Systems: 16 Compatible system operation
- Switchable Frequencies: 106 Preset frequencies
- Manual Mode: n/a
- Frequency Response: 45 Hz – 18 kHz
- Compander System: 2:1
- Pilot Tone: 32 kHz
- Receiving System: Single tuner, diversity
- Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
- Total Harmonic Distortion: ≤.7% (33 kHz deviation at 1 kHz)
- Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
- Audio Output (AF=0):
- Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
- 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
- Output Connectors: 1/4", XLR
- Audio Level Adjust:
- Balanced: -12 to +9 dBu
- Line: -24 to +4 dBu (adjustable in 3 dB-steps)
- Range: 300', (91 M)
- Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
- Dimensions:
- 205 mm (W) x 206 mm (D) x 44 mm (H)
- 406 mm (W) x 209 mm (D) x 44 mm (H) (R42)
- Net Weight:
- 1.92 lbs. / 870 g
- 4.4 lbs. / 2.0 kg (R42)
B60
- RF Power Output: 10 mW, 40 mW
- Frequency Bandwidth: 64 MHz
- Gain Controls: 0 db, -6 dB, -12 dB
- Input Connector: 3 pin mini-XLR
- Batteries Included: 2 AA 1.5 V
- Current Consumption: 110 mA typical
- Battery Life: 14 hours
- Input Impedance:
- Mic: 10 kohm,
- Line: 1 Mohm
- Max Sound Pressure Level: 128 dB to140 dB (depending on mic)
- Dimensions:
- 67 mm (W) x 90 mm (L) x 17 mm (D)
- 2.6" (W) x 3.5" (L) x .67" (D)
- Net Weight: 3.0 oz / 85 g (without battery)
ADX10
- Transducer Type: Pre-Polarized Condenser
- Frequency Response: 50 Hz - 18 kHz
- Polar Pattern: Cardioid
- Output Impedance: 800 ohms
- Sensitivity: 5 mV / Pa @ 1k
- Equivalent Noise Level: <29 dB (A-weighted)
- Signal to Noise Ratio: >65 dB
- Maximum SPL: ≥120 dB
- Power Requirements: 9-52 V phantom
- Connector: Shielded 3’ terminating to a miniature 3 pin Female XLR connector
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
- Materials / Finish: Machined Brass / Black Finish
- Weight: 21 g / 0.74 oz
- Length: 25 mm / .98 in
