Description
A professional true diversity wireless system featuring the Audix OM2 handheld transmitter with the ADX10 cardioid lavalier system.
This is a very efficient and cost effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.
A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and antenna distribution system for up to four systems (8 channels).
Frequency Range
522 MHz - 586 MHz
Features

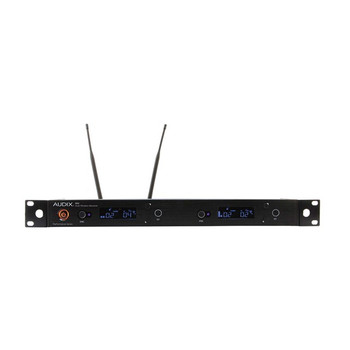

R62 Two Channel True Diversity Receiver
- 64 MHz Wide spectrum tuning receiver
- 2560 Tunable frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam

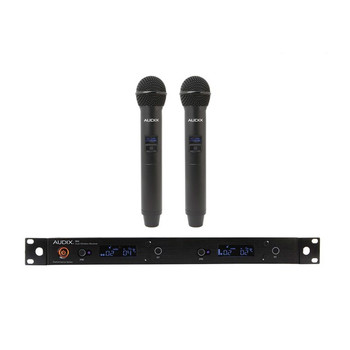

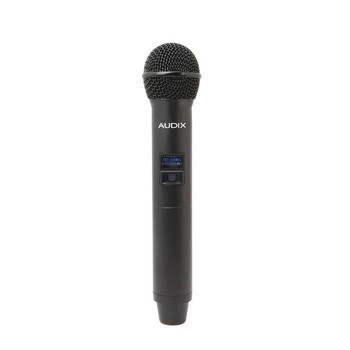

H60 OM2 Handheld Transmitter
- 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
- Durable metal housing
- 14 Hour run time - AA batteries

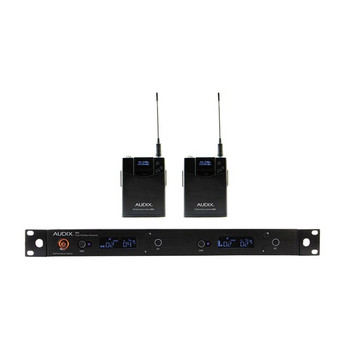

B60 L10 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter with ADX10 lavalier microphone
- Durable metal housing
- 14 Hour run time - AA batteries
What's In The Box
- 1 x R62 64 MHz Two Channel True Diversity Receiver
- 1 x H60 Handheld Transmitter with OM2 Capsule Module
- 1 x B60 Bodypack Transmitter with ADX10 Lavalier Mic
- 2 x Antennas
- 1 x Audio Cable
- 1 x Clip
- 1 x Pouch
- 4 x AA Batteries
- 1 x Power Supply
- 1 x User Guide
- 1 x Rackmount Hardware
- 2 x BNC Cables
Specifications
R61/R62
Frequency Range: 522 MHz – 586 MHz
Bandwidth: 64 MHz
Compatible Systems: 20 Compatible system operation
Switchable Frequencies: 207 Preset frequencies
Manual Mode: 2560 Frequencies (spaced 25 kHz apart)
Frequency Response: 45 Hz – 18 kHz
Compander System: 2:1
Pilot Tone: 32 kHz
Receiving System: Single tuner, true diversity
Signal-to-Noise Ratio: 112 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion: ≤.4% (33 kHz deviation at 1 kHz)
Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0):
- Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
- 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors: 1/4", XLR
Audio Level Adjust:
- Balanced: -12 to +9 dBu
- Line: -24 to +4 dBu (adjustable in 6 dB-steps)
Range: 450', (137 M)
Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions:
- 205 mm (W) x 206 mm (D) x 44 mm (H)
- 406 mm (W) x 209 mm (D) x 44 mm (H) (R62)
Net Weight:
- 2.43 lbs. / 1.1 kg
- 4.65 lbs. / 2.12 kg (R62)
B60
RF Power Output: 10 mW, 40 mW
Frequency Bandwidth: 64 MHz
Gain Controls: 0 db, -6 dB, -12 dB
Input Connector: 3 pin mini-XLR
Batteries Included: 2 AA 1.5 V
Current Consumption: 110 mA typical
Battery Life: 14 hours
Input Impedance:
- Mic: 10 kohm,
- Line: 1 Mohm
Max Sound Pressure Level: 128 dB to140 dB (depending on mic)
Dimensions:
- 67 mm (W) x 90 mm (L) x 17 mm (D)
- 2.6" (W) x 3.5" (L) x .67" (D)
Net Weight: 3.0 oz / 85 g (without battery)
H60
RF Power Output: 10 mW, 40 mW
Frequency Bandwidth: 64 MHz
Gain Controls: 0 dB, -6 dB, -12 dB
Input Connector: n/a
Batteries Included: 2 AA 1.5 V
Current Consumption: 110 mA typical
Battery Life: 14 hours
Input Impedance: n/a
Max Sound Pressure Level: >140 dB (depending on capsule)
Dimensions: 2.1” diameter body, 10.43” (L),
53 mm diameter body, 265 mm (L)
Net Weight: 11.0 oz / 312 g (without battery)
H60/OM2
Type: Dynamic
Polar Pattern: Hypercardioid
Frequency Response: 50Hz - 16kHz
Impedance: 290 ohms
Sensitivity: 1.6 mV / Pa @ 1k
ADX10
Transducer Type: Pre-Polarized Condenser
Frequency Response: 50 Hz - 18 kHz
Polar Pattern: Cardioid
Output Impedance: 800 ohms
Sensitivity: 5 mV / Pa @ 1k
Equivalent Noise Level: <29 dB (A-weighted)
Signal to Noise Ratio: >65 dB
Maximum SPL: ≥120 dB
Power Requirements: 9-52 V phantom
Connector: Shielded 3’ terminating to a miniature 3 pin Female XLR connector
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish: Machined Brass / Black Finish
Weight: 21 g / 0.74 oz
Length: 25 mm / .98 in
