Description
The Micro-D is a miniaturized condenser microphone used for professional stage and studio applications. The Micro-D, known for its clarity, excellent transient response, resistance to feedback, SPL handling and ease of operation, is primarily aimed for miking drums and percussion instruments.
The Micro-D is characterized with a uniformly controlled hypercardioid polar pattern, provides excellent isolation and feedback control on stage as well as natural sound reproduction at very close distances.

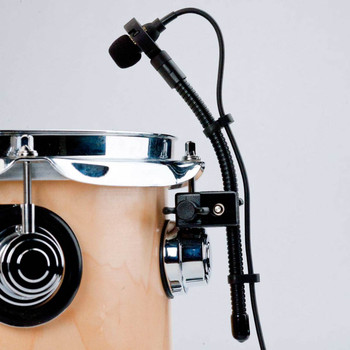

With a smooth and accurate response over a frequency range of 40 Hz - 20 kHz, the Micro-D is lightweight, compact and simple to use. Housed in an aluminum ring and isolated by means of a rubber shockmount system, the Micro-D comes with the DVICE-MICRO mount for drums or the DCLAMP-MICRO mount for hand percussion (Micro-HP). A number of optional accessories are available which allow the Micro-D to be used on a mic stand or cymbal stand for a wider variety of applications.
The Micro-D operates on phantom voltage of 9 - 52 Volts and is supplied with a phantom power adapter, 6 ft integrated mic cable and carrying pouch.
Features
- Small, lightweight, low profile
- High SPL handling
- Miniaturized integrated preamp circuitry
- Excellent for close miking
Applications
- Drums
- Cymbals, percussion toys
Supplied Accessories
- Gooseneck mounting clip (DVICE-MICRO)
- Cylindrical phantom power supply adapter (APS-910)
- External foam windscreen (WS20)
- 6’ attached shielded cable with mini XLR-f connector
- Carrying pouch (P1)
Specifications
Transducer Type Pre-polarized Condenser
Frequency Response 40 Hz - 20 kHz
Polar Pattern Hypercardioid
Output Impedance 250 ohms
Sensitivity 5 mV / Pa @ 1k
Signal/Noise Ratio (A-weighted) 70 dB
Equivalent Noise Level (A-weighted) 24 dB
Maximum SPL @ .5% THD ≥140 dB
Power Requirements 9 – 52 V phantom
Connector 3 pin gold plated male XLR connector
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Housing / Finish Machined Brass/ Gooseneck Flexible Steel
Weight 47 g / 2 ounces
Length 30 mm / 1.14 inches
