Description

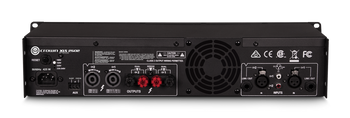

Meet the new XLS DriveCore™ 2 Series
The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.
Features
- Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb (5 kg)
- Higher DSP capabilities: More control; has band pass filter per channel
- Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
- Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
- Set sleep mode after specified time without having to press a button
- Security setting disables menu buttons; menu locked/unlocked by entering combination
- System reset allows factory settings to be restored
- Remote power trigger
- Peakx™ Limiters provide maximum output while protecting your speakers
- XLR, 1/4", RCA inputs provide flexibility
- Integrated PureBand™ Crossover System for better performance and control
- Efficient forced-air fans prevent excessive thermal buildup
Specifications
- Sensitivity 1.4Vrms
- Frequency Response +0dB, -1dB
- Signal to Noise >103dB (at .775Vrms, 6dB lower)
- Intermodulation Distortion < 0.3%
- Damping Factor > 200
- THD < 0.5%
- Crosstalk At 1kHz: > 85dB, At 20kHz: > 55dB
- Dimensions 19" (48.3 cm) x 3.5" (8.9 cm) x 10.7" (21.2 cm)
- Weight 10.8 lbs (4.9 kgs)
