Description

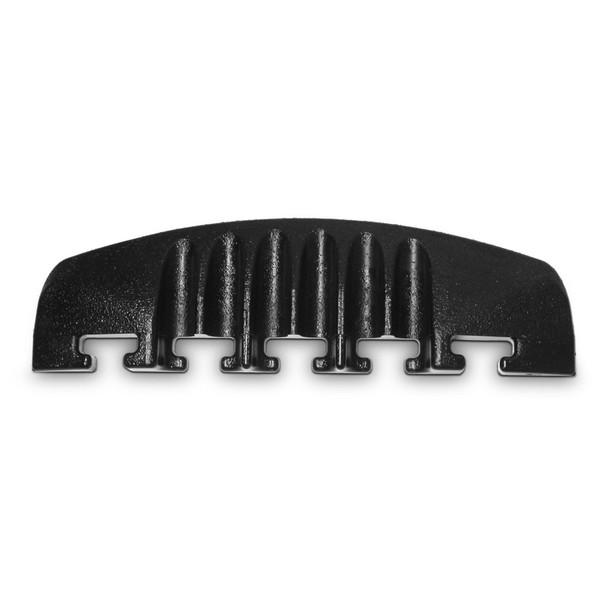

NANO End Ramp female
Cable protector 6 channels | end piece female | medium duty | height 3.2cm
- Particularly flat, non-slip Cable protector made of black, recyclable polyurethane, suitable for wheelchairs
- Yellow polyurethane lid with high warning effect and secure locking mechanism (also available with black lid and as LUX version)
- Patented self-cleaning lid hinge
- 6 channels 17 x 18 mm
- Load capacity approx. 2 tonnes / 20 x 20 cm
- Fire protection class B2 (DIN 4102)
- Resistant to oil, acid, petrol and short-term contact with solvents
- Dimensions 101 x 28.5 x 3.2 cm; weight only 4.8 kg
- Reliable cable and personal protection for indoor and outdoor use
- Not suitable for road traffic
- TÜV Süd certified
Female end piece for DEFENDER NANO Cable protector
Specifications
General
- Material TPU (Thermoplastic polyurethane)
- Surface structure Ribbed
- Colour Black
- Maximum load (on 20 x 20 cm) 2 t
- Chemical resistance Petrol, Solvents (short-term contact), Oil
- Hardness range (±4 Shore A) 88 Shore A
- Shape Round
Cable ducts
- Quantity 6
- Cable ducts size (W x H) 17 mm x 18 mm / 17 mm x 19 mm
Environmental
- Fire protection class (EN 13501-1) B2
- Ambient temperature -30 - 60 °C
Dimensions & weight
- Length 72 mm
- Width 285 mm
- Height 32 mm
- Weight 0.1 kg
