Description
FUZE PENDANT COMPACT
The FUZE PENDANT Compact™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 7,200 lumens, the FUZE PENDANT Compact is ideal for a variety of ceiling height applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.
Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45° included, 25°, 40° or 50° optional) allow for precise light distribution. Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.
Features
- Full Spectrum 144W 5in1 LED Array
- 2,400 - 8,500K Color Temperature
- CRI 90 @ 3,200K
- 7,200 Total Lumen Fixture Output
- 45° Lens Included
- Optional 25°, 40°, and 50° Lens Available
- Compact Fanless Design
- DMX, RDM, 0-10V and E-FLY Wireless Support
- 48V Emergency Battery Input
- Bare Wire Block Terminal Connections (connectors included)
- Pendant Bracket (included)
- Optional Yoke or Recessed Ceiling Mount Kits Available
- Optional Half and Full Snoot Kits Available
Specifications
- SOURCE
- 144W 5-in-1 RGBWL (Red, Green, Blue, White, LimeLED Array
- 50,000 Hour Average LED Life*
- *Test lab conditions. May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- PHOTOMETRIC DATA
- 7,200 Total Lumen Fixture Output
- CRI 90 @ 3,200K
- 45° Lens Included
- EFFECTS
- Color Temperature Control 2,400K - 8,500K
- Virtual Color Swatch Book
- Dimmer, RGB, RGBWL and HSI Control Options
- Variable 16-bit Dimming Curves
- High Speed Electronic Shutter and Strobe
- DMX and Menu adjustable LED Refresh Rate Frequency
- CONTROL / CONNECTIONS
- 8 DMX Channel Modes
- Standalone and Primary/Secondary Modes
- RDM (Remote Device Management)
- 0-10V Dimming (Current-Sink)
- E-FLY™ Internal Extended Range Wireless DMX Transceiver
- 4 Button Control Panel and OLED Menu Display
- Locking 5pin XLR Connector In/Out
- Locking IP65 Power Connector In
- 3pin Bare Wire Terminal Block for Power
- 5pin Bare WireTerminal Block for 0-10V, DMX
- 2pin Bare Wire Terminal Block for 48V Emergency Battery Input
- SIZE / WEIGHT
- Length: 8.75" (222.25mm)
- Diameter: 7.8" (197mm)
- Weight: 11.4lbs. (5.2 kg)
- ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- Max Power Consumption 145W
- 14°F to 113°F (-10°C to 45°C)
- APPROVALS / RATINGS
- CE | cETLus | IP20 | FCC
- OPTIONAL ACCESSORIES:
- FPL25- 25° Lens
- FPL40- 40° Lens
- FPL50- 50° Lens

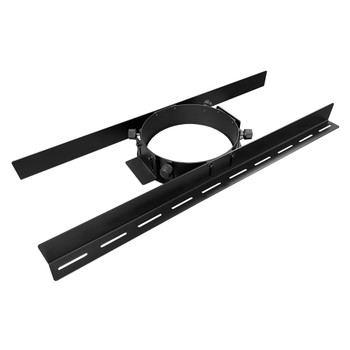

- FPCMK- Ceiling Mount Kit

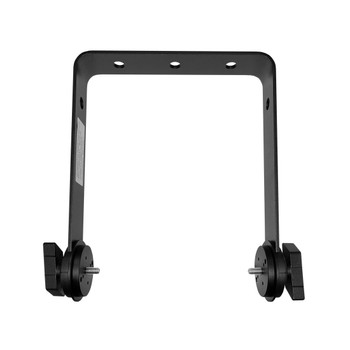

- FPYMK- Yoke Mount Kit
- FPHS- Half Snoot
- FPFS- Full Snoot
