Description
The PIXEL BAR 30IP™ is an outdoor IP65 rated LED pixel bar featuring (30) tri-color RGB SMD LEDs with a 16mm pixel pitch, a 120 beam angle, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 0.5 meter (1.6 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.
Easy and versatile control options are handled by the Pixel Driver 4000™ (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net and 680 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary IP rated 4pin combo cables (sold separately) which are available in lengths from 2 to 50 meters.
FEATURES
- Outdoor IP65 Rated
- (30) RGB SMD LEDs | 0.5 meter / 1.6 feet
- 16mm Pixel Pitch | 120° Angle | 44,000Hz PWM
- Flicker Free Operation for Broadcast TV and FILM
- Magnetic End Caps - Seamless End-to-End Spacing
- Integrated Adjustable Mounting Bracket

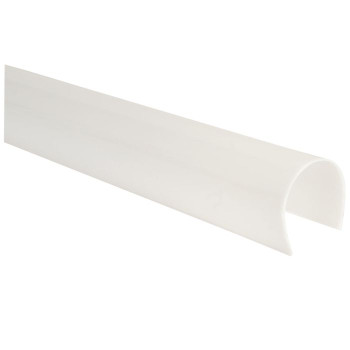

- Square and Rounded Frosted Lens Included
- Proprietary IP Rated Power/Data Combo Cables*
- Available in 2/3/5/10/12/15/20/25/30/50 Meter Lengths
- Pixel Driver 4000™ Controller (sold separately)
- Manual Dimming and Strobe Control
- Full Pixel Mapping Control
- 4,080 Max Pixels via Kling-Net
- 680 Max Pixels via Art-Net and sACN (streaming ACN)
