Description

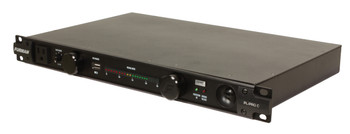

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.
APPLICATIONS
Instrument Rigs
You've got a rack for your effects, preamps, tuner...You're going to plug that into the wall? One big spike and your rig is up in smoke. Furman's advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman's advanced Linear Filtering Technology, you'll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.
Recording
Can't track down where that noise is coming from? Your mix sounding flat? With Furman's advanced Linear Filtering Technology you'll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman's advanced advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it's enough to power your whole home studio.
DJ Equipment
Bars, clubs and other event venues have some of the worst power out there - from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman's advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.
Pro Audio
When you're out there gigging, you never know what kind of power you're going to get. The wear and tear on mobile rigs eventually takes it toll - that's why it's smart to plug into Furman's advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you're setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.
FEATURES
Surge Protection
Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration
LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
Voltage Protection
Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
Isolated Banks
Isolated outlet banks minimize inter-component interference and noise contamination.
Wall Wart Spacing
Three widely spaced outlets accommodate bulky AC power transformers.
20 AMP Rating
20 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
Nine Total Outlets
Nine total outlets (8 rear panel outlets and one front panel convenience outlet).
BNC Lamp Connector
Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
Specifications
Maximum Output Current: 20 amps
BNC Socket w/Switch: Rear rack lamp, 12VAC 500MA max (lamp not included)
Operating Voltage: 90 to 140 VAC
Over Voltage Shutdown: 140 VAC typically
Spike Protection Mode: Line to neutral, zero ground leakage
Spike Clamping Voltage: 188 Vpk @ 3,000 Amps (133 VAC RMS)
Maximum Surge Current: 6,500 Amps
Frequency: 50/60Hz
Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10MHz. Linear attenuation curve from 0.05 - 100 ohms line impedance
Dimensions: 19” W x 10.5” D x 1.75” H
Weight: 11 lbs.
Power Consumption: 12 watts
Safety Listing: CSA UL1449, CE, NRTL-C
