Description

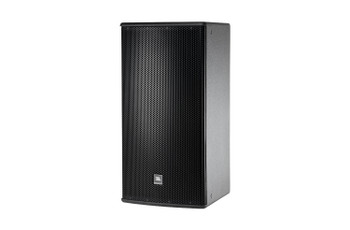

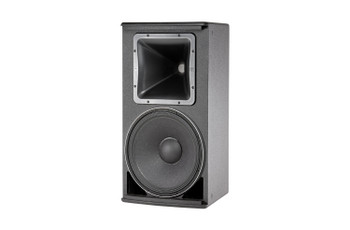

2-Way Loudspeaker System with 1 x 15" LF
The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
FEATURES
- 265H-1 Differential Drive® Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White and WRC/WRX weather resistant finishes
APPLICATIONS
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
Specifications
- Frequency Range (-10 dB) 35 Hz - 20 kHz
- Frequency Response (±3 dB) 41 Hz – 18 kHz
- Coverage Pattern
- /64: 60° x 40°
- /66: 60° x 60°
- /95: 90° x 50°
- /26: 120° x 60°
- Directivity Factor (Q) 14.5
- Directivity Index (DI): 11.6 dB
- Crossover Modes Bi-amp/Passive switchable
- Passive Crossover Frequency 2 kHz
- Transducer Power Rating (AES)
- LF: 500 W (2000 W peak), 2 hrs
- 350 W (1400 W peak), 100 hrs
- HF: 40 W (160 W peak), 2 hrs
- Long-Term System Power Rating (IEC)
- Passive mode: 350 W (1400 W peak), 100 hrs
- Maximum SPL Bi-amp mode:
- LF: 125 dB-SPL cont avg
- HF: 131 dB-SPL cont avg.
- System Sensitivity (1W @ 1m) Passive mode: 98 dB SPL
- Low Frequency Driver 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
- Nominal Impedance 8 ohms
- Sensitivity (1W @ 1m, within operational band) 99 dB SPL
- High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
- Nominal Impedance 8 ohms
- Sensitivity (1W @ 1m) 115 dB SPL
- Waveguide PT-H66HF-1
- Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish Black DuraFlex™ finish. White available upon request.
- Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
- Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
- Dimensions (H x W x D in vertical cabinet orientation) 783 x 422 x 504 mm (30.8 x 16.6 x 19.85 in)
- Net Weight 25.0 kg (55 lb)
- Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
