Description

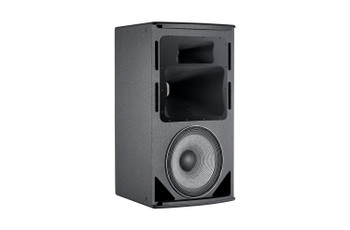

High Power 3-Way Loudspeaker
AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
FEATURES
- 2265H Differential Drive® Low-Frequency Driver
- CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
- 2432H High-Frequency Compression Driver
- PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
- Bi-Amp/Tri-Amp Switchable.
APPLICATIONS
- Performing arts facilities
- Theatrical sound design
- Auditoriums
- Houses of worship
- Live clubs
- Dance-clubs/discotheques
- Sports facilities
- Themed entertainment venues
Specifications
- Frequency Range (-10 dB) 38 Hz – 20 kHz
- Frequency Response (±3 dB) 45 Hz – 18 kHz
- Coverage Pattern
- /64: 60° x 40°, rotatable waveguide
- /95: 90° x 50°, rotatable waveguide
- Directivity Index (DI) 13 dB
- Crossover Modes Tri-amp/Bi-amp switchable
- Crossover Frequencies 300 Hz and 2.3 kHz
- Transducer Power Rating (AES)
- LF: 1000 W (4000 W peak), 2 hrs
- 750 W (3000 W peak), 100 hrs
- MF: 350 W (1400 W peak), 2 hrs
- HF: 100 W (400 W peak), 2 hrs
- Long-Term System Power Rating (IEC)
- LF: 600 W (2400 W peak), 100 hrs
- MF/HF: 200 W (800 W peak), 100 hrs
- Maximum SPL
- LF: 127 dB-SPL cont avg (133 dB peak)
- Tri-amp mode:
- MF: 133 dB-SPL cont avg (139 dB peak)
- HF: 135 dB-SPL cont avg (141 dB peak)
- Bi-amp mode:
- MF/HF: 133 dB-SPL cont avg (139 dB peak)
- System Sensitivity of Passive Sections (1W @ 1m) MF/HF Section in Bi-amp mode: 108 dB SPL
- Nominal Impedance System Sensitivity 8 ohms
- Low Frequency Driver 1 x JBL 2265H 380 mm (15 in ) Differential Drive® driver with 75 mm (3 in)
- Sensitivity (1W @ 1m) (Low Frequency) 97 dB SPL
- Midrange Driver JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice coil internal driver
- Sensitivity (1W @ 1m) (Midrange) 108 dB SPL
- High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
- Sensitivity (1W @ 1m) (High Frequency) 115 dB SPL
- Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
- Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish Black DuraFlex™ finish. White available upon request.
- Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Input Connector NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
- Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
- Dimensions (H x W x D in vertical cabinet orientation) 967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
- Net Weight 45.8 kg (101 lb)
- Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
