Description

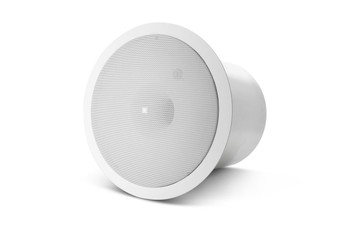

In-Ceiling Subwoofer
The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile
in-ceiling design.
Features
- Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
- Component: Long excursion 200 mm (8 in) driver.
- Packaged with grille, backcan and tile rails for fast installation and easy stocking.
- Simple installation and wire connection method.
- Sold in Pairs
Specifications
Frequency Range: 42 Hz - 200 Hz
Power Capacity: 200 W Continuous Program Power
Nominal Sensitivity: 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (π/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2π)
Nominal Coverage Angle: 180° conical coverage
Rated Maximum SPL: 115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2)
Nominal Impedance: 8 ohms
Low Frequency: 200 mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former
Enclosure Material: Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Overload Protection: Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
Terminations: Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
Safety Agency Rating: In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.
Outside Dimensions (H x Dia): 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
Cutout Size (H x W): 305 mm (12.0 in)
Net Weight (ea): 5.5 kg (12 lb
Shipping Weight (pair): Control 19CS: T12.7 kg (28 lb); Control 19CST: 14.3 kg (32 lb)
Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
