Description

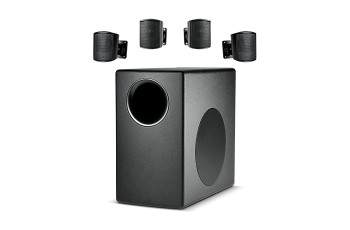

Surface-Mount Satellite Speaker for Subwoofer-Satellite
Loudspeaker System
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.
Features
- Stylish, unobtrusive design fits into a wide variety of decors
- Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
- 16 ohms impedance
- Wall-mount brackets included
- Available in black or white
- 2-Pack
Specifications
Frequency Range (-10 dB): 140 Hz – 20 kHz
Frequency Response (±3 dB): 180 Hz – 17 kHz
Power Capacity: 50 Watts Continuous Program Power (2 hrs); 25 Watts Continuous Pink Noise (2 hrs); 30 Watts Continuous Program Power (100 hrs); 15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity: 85 dB (4.0V/1m = 1W); 82 dB (2.83V, 1m)
Nominal Coverage Angle: 150° x 150° (omnidirectional)
Rated Maximum SPL (1m): 94 dB average, 100 dB peak
Nominal Impedance: 16 ohms
Transducer Driver: 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
Input Connector: Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Material: High impact polystyrene, painted zinc-plated metal grille.
Dimensions (H x W x D): Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in); Wall bracket: 51 mm (2.0 in)
Net Weight: 0.7 kg (1.5 lbs)
Shipping Weight: 0.8 kg (1.8 lbs)
Included Accessories: Wall bracket (both speaker and wall parts), 2-pin locking connector.
