Description
CURV 500 SLA T

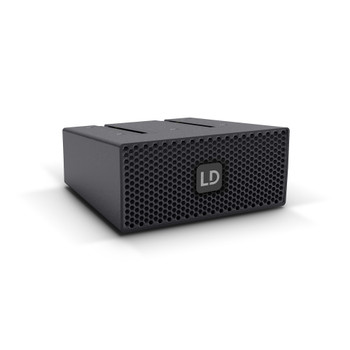

Curv 500® 70 / 100 V SmartLink® Adapter Black
- 70 / 100 V SmartLink® adapter for up to 4 LD CURV 500® satellites.
- Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms

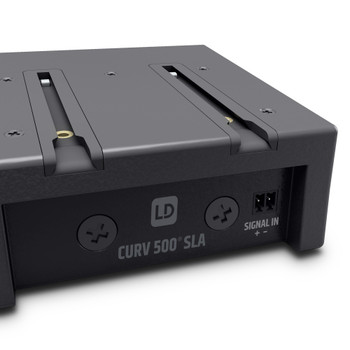

- 2-pin input for screw connector
- Switchable for 70 or 100 V operation
- Special accessories for mounting on walls and ceilings
This version of the SmartLink® adapter allows up to 4 Curv 500® satellites to be operated as an ELA system with 70 or 100 volts per adapter. It has an input for a 2-pin screw connector. The integrated transformer offers a selection of four 10 to 80 W output taps. The adapter is available in black (LDCURV500SLAT) or white (LDCURV500SLAWT); wall and ceiling holders from the Curv 500® accessory range make for straightforward installation.
Specifications
- Product type PA Complete Systems Accessories
- Type Smartlink® Adapter
- Material Die-cast aluminium
- Surface Powder coated
- Connectors screw-/plug-in terminal 2 pole
- Color Black
- Width 122 mm
- Height 57 mm
- Depth 122 mm
- Weight 1,15 kg
- Features 2x M6 thread for optional wall/truss mount, 4 x rubber feet for desktop use, SmartLink® System
