Description
U305.1 BPH US (USA version)
Wireless Microphone System with Bodypack and Headset - 512 - 542 MHz
- Diversity UHF wireless system with FM technology
- 12 selectable channels
- 100 m transmission range in ideal conditions
- Simultaneous operation of up to 6 systems
- ASC infrared transmitter and receiver syncing
- Pilot tone squelch
- 10 h transmitter operation on two AA batteries
- Metal housing
- Optional rackmount kit available as accessory
Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.
U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.
U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.
Specifications
General
- Product type Wireless Microphone Systems
- Type Set
- Transmission frequency range 512 - 542 MHz
- Weight 0,85 kg
LDU3051BP - LD Systems U305.1 BPH US (USA version) Body Pack transmitter - 514 - 542 MHz (only available in the USA)
- Product type Wireless Microphone System Accessories
- Type Bodypack
- Transmission frequency range 514 - 542 MHz
- Frequency response 25 - 16000
- Channels 12
- Groups 1
- Inputs Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
- Rated HF output power 10 mW
- Signal-to-noise ratio 104 dB
- Operating time >10 h
- Weight 0,085 kg
- Controls Gain (3-way switch) , Power On/Off
- Indicators ASC IR Sync (Green/Amber Blinking LED) , Battery (low battery: red) , Power LED (Power ON: green)
- Power supply 2 x AA battery
- Width 65 mm
- Height 91 mm
- Depth 25 mm
- Other features Belt clip , IR frequency synchronisation , Pilot tone

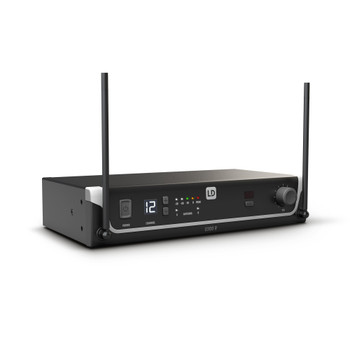

LDU3051R - LD Systems U305.1 BPH US (USA version) Receiver (only available in the USA)
- Product type Wireless Microphone System Accessories
- Type Receivers
- Modulation Type FM
- Transmission frequency range 514 - 542 MHz
- Frequency response 25 - 16.000
- Channels 12
- Groups 1
- Antenna inputs 2 x fixed
- Noise reduction Squelch
- Transmission optimization Pilot tone
- Total Harmonic Distortion (THD) < 0.3 %
- Signal-to-noise ratio 104 dB
- Audio output, balanced XLR
- Audio output, unbalanced 6.3 mm jack, switchable unbalanced output level
- Audio mix output, balanced XLR
- Audio mix output, unbalanced 6.3 mm jack
- Accessories (included) 2 x AA batteries , Audio cable , Power supply
- Weight 0,7 kg
- Max. output level +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
- Headphones outputs 6.3 mm TRS
- Controls ASC Sync , Channel down , Channel up , Line/Instrument Level , Power , volume
- Indicators 5 LED VU meters , Antenna A/B , LC display
- Power supply 12 V DC - 18 V DC (500 mA), external power supply
- Width 211 mm
- Height 43 mm
- Depth 120 mm
- Other features IR frequency synchronisation
LDWS100MH1 - LD Systems U305.1 BPH US (USA version) Headset microphone, black
- Product type Wireless Microphone System Accessories
- Type Headsets
- Frequency response 100 Hz - 12 KHz
- Directivity Cardioid
- Nominal impedance 680 Ohm(s)
- Phantom power requierements 5 V
- Microphone input Mini-XLR (3-pin, female)
- Cable length 1 m
- Accessories (included) Foam windscreen
- Weight 0,049 kg
