Description
This model meets very specific recording demands
Conventional microphone capsules are round. It's an easy shape to produce but it has one significant disadvantage — a primary resonance frequency. That's why so many microphones have unnatural boost in the 5-10 kHz region. Pearl's rectangular capsule has almost no resonances at all, a fact that pleases many audio engineers.

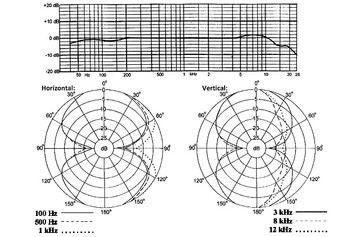

Pearl has made rectangular capsules for many years now, but never before with such an extreme (7:1) length/width ratio. The resulting polar pattern is that of a cardioid in the horizontal plane while it vastly reduces high frequencies in the vertical axis. This is very useful when isolating a sound source from, say, floor and ceiling reflections.
Pearl ELM-C can be used MS stereo setup (in conjunction with a figure-of-eight microphone, such as the Pearl ELM-B) or when used in a pair for XY stereo use.
The ELM-C is finished in piano black ED lacquer with a yellow logo, ring and engraved model number.
Specifications
| Polar pattern | Cardioid |
| Sensitivity | 22mV/Pa |
| Frequency response | 20Hz - 25kHz |
| Impedance | 100 ohms |
| Operating Voltage | 48 volts |
| Rec. load imp | 1k ohms |
| Current consumption | 2.7 mA |
| Self noise | 10 dBA |
| Max SPL | 126 dB |
| Connector | 3-pin XLR |
| Dimensions | 192 x ø32 mm/28mm |
| Weight | 305 g |
Package Includes
- Wooden box
- Microphone shockmount 1930
- Individual frequency graph
