Description

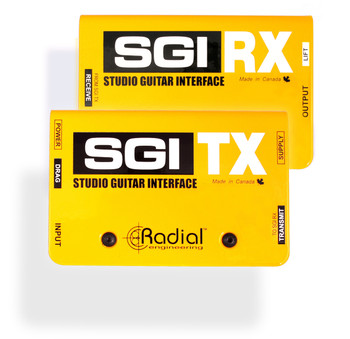

Studio Guitar Interface For JX-44
The SGI-44™ is a line driver for guitars and basses that connects to the JX-44 to allow a remote pedalboard to be connected without signal loss or noise.
Features
- Balanced line driver for JX-44 guitar & amp switcher
- Send signal over 100 meters (300ft) without loss
- 100% discrete class-A circuit with Drag control
- Bidirectional send & receive effects router
Connect to your pedalboard remotely
The SGI-44 can send guitar signals over long distances without signal loss or noise, with built-in send and receive functions for bidirectional signal routing. When used in conjunction with the JX-44 guitar and amp switcher, it allows you to keep your pedalboard at your feet on stage, while instrument switching and amp control is managed remotely by your stage tech. A pair of SGI-44s can also be used together to extend the effects loop of your amplifier to any point on stage, so you can keep your favorite pedals connected to the amp's effects loop no matter how far away your amp is located. The SGI-44 takes care of all the balancing, buffering, and impedance matching to ensure your signals are delivered without noise or distortion.
SGI-44 Applications
- Using the SGI 44 with the Radial JX44
- The Radial JX44 comes with a built-in SGI-44 to make distant effects routing easy. Simply connect the JX44 to the SGI-44 using a pair of XLR cables to route the signal from the wireless receiver bank out to the pedals and back. The SGI-44 lets you incorporate a pedalboard as if connected directly yet does so without noise or signal loss.
- Using the SGI-44 in the studio
- The Radial SGI-44 lets you play guitar using your 100 watt amp in an isolation room while you listen to the performance in front of your studio monitors. Connect your guitar to the first SGI-44 and run an XLR cable to a second unit using the studio XLR tie lines. Connect to your amp at the other end. Adjust the Drag Control to correct the load and optimize the signal for the right feel and you are set to go!
- Using the SGI-44 on a concert stage
- Routing the guitar signal from the wireless system to the pedals and amps is usually problematic due to induced electromagnetic fields and noise caused by ground loops. The SGI-44 solves the problem with a 100% isolated signal path and easy connections. Set one SGI-44 near the wireless receiver and a second at the pedalboard. Connect using XLR cables and you are set to go!
Specifications
When used in combination with the JX44 the optional SGI-44 can either be used as a bi-directional long haul effects loop or as a single ended driver from a guitar to the JX44 and your amps. Balanced audio connections between the JX44 and SGI-44 allow distances up to 100 meters (300 feet) using standard XLR mic cable. This is accomplished using a proprietary hybrid active drive circuit with Jensen transformer isolation to transfer the signal between units without introducing noise or signal loss.
- Audio circuit type: Active 100% discrete class-A with transformer isolation
- Frequency response: 20Hz ~ 20kHz (-2dB)
- Dynamic range: 105dB
- Total harmonic distortion: 0.005% @ 1k
- Intermodulation Distortion: 0.02% @ 1k
- Input Impedance: Variable from 10k Ohms ~ 1 megaOhm
- Output Impedance: 218 Ohms (¼" unbal. output); 280 Ohms (TX bal. output)
- Noise: -100dBu
- Maximum Input: +2dBu
Features
- Ground lift, Drag Control
- Input Connectors: 1/4", XLR
- Output Connectors: 1/4", XLR
General
- Construction: 14-gauge steel chassis & outer shell
- Size (L x W x D): 4.25" x 2" x 5" (102 x 76 x 165mm)
- Weight: 3lbs. (1.36kg)
- Shipping size (L x W x D): 5.25" x 2.5" x 11" ( 127 x 64 x 279mm)
- Shipping weight: 3.1lbs (1.41kg)
- Power: +15VDC/400mA adapter included
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
