Description
ADX2/K8

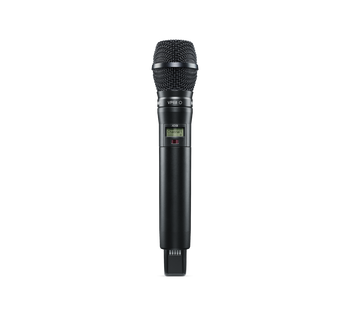

Handheld Wireless Microphone Transmitter
ADX2/K8, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
The ADX2/K8 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
- Works with Axient® Digital Wireless Systems
- Features the KSM8 cartridge
- Includes two SB920 rechargeable batteries
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
FEATURES
- Durable, moisture-resistant, lightweight metal case in black or nickel finish
- Up to 9 hours of runtime with SB920 rechargeable battery
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
Specifications
- Gain Offset Range –12 to 21 dB (in 3 dB steps)
- Battery Type SB920 Rechargeable Lithium-Ion
- Battery Run Time @10 mW up to 9 hours
- Dimensions (L × Dia.) 10.0 × 2.0 in (254 × 51 mm)
- Weight 11.9 oz (338 g) wihtout battery
- Housing Cast Aluminum
AUDIO INPUT
- Configuration Unbalanced
- Maximum Input Level 1 kHz at 1% THD
- 145 dB SPL, typical (SM58)
- Note: dependent on microphone type
RF OUTPUT
- Antenna Type UHF 1/4 Wave
- Occupied Bandwidth <200 kHz
- Modulation Type Shure Axient Digital Propietary
- Power 2 mW, 10 mW, 20 mW, 40 mW
- Varies by region.
- Specific Absorption Rate (SAR) <0.19 W/kg
SHOWLINK®
- Network Type IEEE 802.15.4
- Antenna Type ZigBee Dual Conformal
- Frequency Range 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power Varies By Region; 10 dBm (ERP)
