Description
C411 L

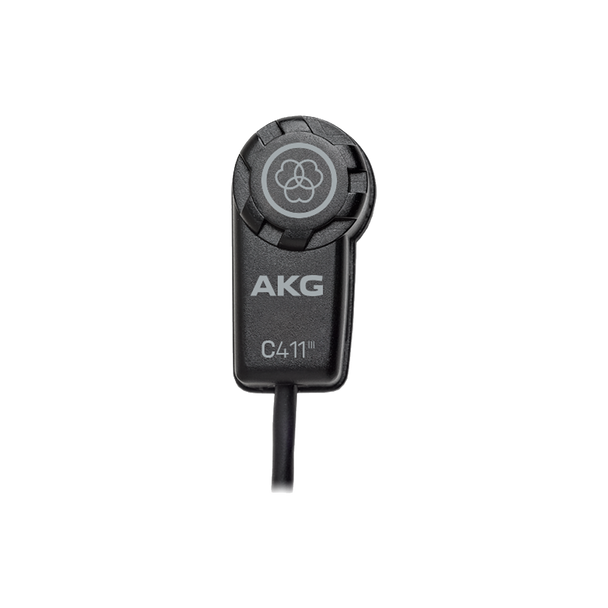

High-performance miniature condenser vibration pickup
Feel the vibe
The C411 is a miniature vibration pickup for acoustic guitar, mandolin, violin and most other string instruments. Its integrated condenser capsule will reproduce the sound of the instrument clearly and without coloration. The C411 ultralight pickup (18g/0.6oz) can be easily attached on or near the bridge with the included nonmarking, solvent-free adhesive pad without changing the balance of the instrument. The C411 is available in two versions. The C411 PP features a MPAV standard XLR connector while the C411 L provides a professional three-pin mini XLR connector that fits the body-pack transmitters of all AKG wireless microphone systems.
Specifications
- Type Pre-polarized condenser transducer
- Polar Pattern Figure of eight
- Audio frequency bandwidth 10 - 18000 Hz
- Sensitivity 2 mV/Pa
- Electrical impedance 200 Ohms
- Recommended load impedance 1000 Ohms
- Max. SPL for 1%/3% THD 96 dB / 103 dB
- Current consumption approx. 2.2 mA
Dimensions
- Length 9.7 mm
- Width 14.2 mm
- Height 26.7 mm
- Net Weight 18 g (0.6 oz.)
- Cable length 1.5 m (5 ft.)
Design
- Body plastic
- Finish matte black
Audio Output
- Type Mini XLR
- Gender Female
- Contacts 3-pin
Powering Interface
- Voltage 9 to 52 V
- Current 2 mA
Application
- Live Instrument Yes
Instrument
- Piano / Strings Yes
