Description
The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands – DE2 (470–530 MHz) and EE1 (530–590 MHz) – that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.
Available system configurations feature an ATW-R3210 receiver along with an ATW-T3201 body-pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector for secure connection to A-T's cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.
CONSUMER ALERT
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
Features
- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
- Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
- New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
Configurations
- ATW-3211
- ATW-R3210 receiver and ATW-T3201 body-pack transmitter with cH-style screw-down 4-pin connector. Select a microphone or cable with a cH-style screw-down 4-pin connector from the list below to complete the system.Available separately, the AT-cWcH Adapter Cable enables wireless microphones with a cW-style locking 4-pin connector to be used with body-pack transmitters that have a cH-style screw-down 4-pin connector.
- ATW-3211/831
- ATW-R3210 receiver and ATW-T3201 body-pack transmitter with AT831cH cardioid condenser lavalier microphone.
- ATW-3211/892X
- ATW-R3210 receiver and ATW-T3201 body-pack transmitter with BP892XcH MicroSet omnidirectional condenser headworn microphone. Includes element covers, windscreens and clothing clip.
- ATW-3211/892XTH
- ATW-R3210 receiver and ATW-T3201 body-pack transmitter with BP892XcH-TH MicroSet (beige) omnidirectional condenser headworn microphone. Includes element covers, windscreens and clothing clip.
- ATW-3211/893X
- ATW-R3210 receiver and ATW-T3201 body-pack transmitter with BP893XcH MicroEarset omnidirectional condenser headworn microphone. Includes element covers, windscreens and clothing clip.
- ATW-3211/893XTH
- ATW-R3210 receiver and ATW-T3201 body-pack transmitter with BP893XcH-TH MicroEarset (beige) omnidirectional condenser headworn microphone. Includes element covers, windscreens and clothing clip.
- ATW-3211/894X
- ATW-R3210 receiver and ATW-T3201 body-pack transmitter with BP894XcH MicroSet¢ç cardioid condenser headworn microphone. Includes windscreens and clothing clip.
- ATW-3211/894XTH
- ATW-R3210 receiver and ATW-T3201 body-pack transmitter with BP894XcH-TH MicroSet (beige) cardioid condenser headworn microphone. Includes windscreens and clothing clip.
- ATW-3212/C510

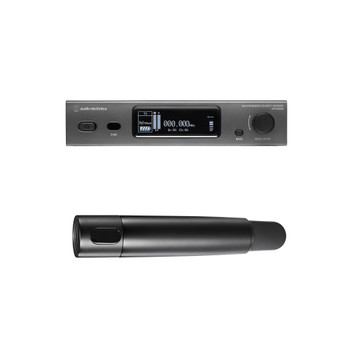

- ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C510 cardioid dynamic microphone capsule.
- ATW-3212/C710
- ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C710 cardioid condenser microphone capsule.
- ATW-T3201 Body-pack transmitter with cH-style screw-down 4-pin connector.
- ATW-T3202 Handheld microphone/transmitter with industry-standard thread mount for use with interchangeable wireless microphone capsules.
- ATW-R3210 Wireless diversity receiver.
Specifications
| OVERALL SYSTEM SPECIFICATIONS | |
|---|---|
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations. |
| Minimum Frequency Step | 25 kHz |
| Modulation Mode | FM |
| Maximum Deviation | ATW-T3201: Ì´å±38 kHz (THD:10%) ATW-T3202: Ì´å±36 kHz (THD:10%) |
| Dynamic Range | ATW-T3201 Mic input: > 115 dB (A-weighted), typical ATW-T3201 Inst input: > 112dB (A-weighted), typical ATW-T3202: > 115 dB (A-weighted), typical |
| Total Harmonic Distortion | <1.0% (at 1 kHz, Ì´å±17.5 kHz deviation) |
| Operating Range | 100 m (328') Open range environment with no interfering signals. |
| Operating Temperature Range | -5Ì´åÁ C to +45Ì´åÁ C (23Ì´åÁ F to 113Ì´åÁ F) |
| Frequency Response | ATW-T3201: 31 Hz to 15,500 Hz
ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element |
| Maximum Simultaneous Use (Recommended) | 40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent |
| RECEIVER SPECIFICATIONS | |
|---|---|
| Receiving System | True Diversity |
| Image Rejection | 60 dB nominal |
| RF Sensitivity | 20 dBuV at 60 dBA S/N ratio (50 ohms termination) |
| Antenna Power | 12 V DC, 160 mA (combined) |
| Maximum Output Level | XLR, balanced: +14 dBV 6.3 mm (1/4"), unbalanced: +8 dBV |
| Antenna Input | BNC-type, 50 ohms |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply |
| Dimensions | 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
8.27" x 7.52" x 1.71" (W x D x H) |
| Net Weight | 1100 g (38.8 oz), without accessories |
| Accessories Included | Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters
|
| BODY-PACK TRANSMITTER SPECIFICATIONS | |
|---|---|
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions | Following Federal and National Regulations |
| Input Connections | cH-style screw-down 4-pin connector
Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V |
| High-pass (low-freq. roll-off) | 125Hz, 12dB/octave |
| Batteries | Two 1.5V AA, not included |
| Battery Life | High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. |
| Dimensions | 64 mm x 82 mm x 23 mm (W x D x H)
2.52" x 3.22" x 0.91" (W x D x H) |
| Net Weight | 102 g (3.6 oz), without batteries |
| HANDHELD TRANSMITTER SPECIFICATIONS | |
|---|---|
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions | Following Federal and National Regulations |
| Microphone Capsule | Interchangable industry standard thread |
| Batteries | Two 1.5V AA, not included |
| Battery Life | High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. |
| Dimensions | ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter
ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter |
| Net Weight | ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries
ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries |
