Description
A professional diversity wireless system featuring the ADX20i clip on cardioid condenser for sax, trumpet and brass instruments.
Designed for stage, broadcast and recording, the ADX20i handles high sound pressure levels and provides natural sound reproduction at very close distances. The lightweight, compact and easy to use ADX20i features a shock mounted clip to help reduce noise and vibration. The spring tension clip makes for easy mounting on the bell of an instrument, and a flexible gooseneck allows for precise positioning.
Available Frequency Bands
- A = 522 MHz - 554 MHz
- B = 554 MHz - 586 MHz
Features
R41 Diversity Receiver
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies for quick, easy and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam
B60 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 14 Hour run time - AA batteries

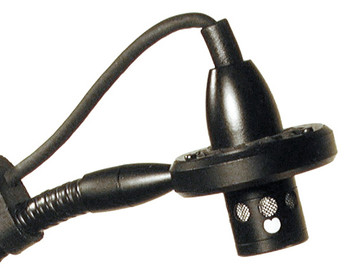

ADX20i Clip on Condenser Microphone
What's In The Box
- 1 x R41 32 MHz Diversity Receiver
- 1 x B60 Bodypack Transmitter
- 1 x ADX20i Clip On Microphone
- 2 x Antennas
- 1 x Audio Cable
- 1 x Clip
- 2 x AA Batteries
- 1 x Carrying Case
- 1 x Power Supply
- 1 x User Guide
- 1 x Rackmount Hardware
Specifications
R41/R42
Frequency Range: 522 MHz – 554 MHz / 554 MHz - 586 MHz
Bandwidth: 32 MHz
Compatible Systems: 16 Compatible system operation
Switchable Frequencies: 106 Preset frequencies
Manual Mode: n/a
Frequency Response: 45 Hz – 18 kHz
Compander System: 2:1
Pilot Tone: 32 kHz
Receiving System: Single tuner, diversity
Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion: ≤.7% (33 kHz deviation at 1 kHz)
Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0):
- Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
- 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors: 1/4", XLR
Audio Level Adjust:
- Balanced: -12 to +9 dBu
- Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range: 300', (91 M)
Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions:
- 205 mm (W) x 206 mm (D) x 44 mm (H)
- 406 mm (W) x 209 mm (D) x 44 mm (H) (R42)
Net Weight:
- 1.92 lbs. / 870 g
- 4.4 lbs. / 2.0 kg (R42)
B60
RF Power Output: 10 mW, 40 mW
Frequency Bandwidth: 64 MHz
Gain Controls: 0 db, -6 dB, -12 dB
Input Connector: 3 pin mini-XLR
Batteries Included: 2 AA 1.5 V
Current Consumption: 110 mA typical
Battery Life: 14 hours
Input Impedance: Mic: 10 kohm,
Line: 1 Mohm
Max Sound Pressure Level: 128 dB to140 dB (depending on mic)
Dimensions:
- 67 mm (W) x 90 mm (L) x 17 mm (D)
- 2.6" (W) x 3.5" (L) x .67" (D)
Net Weight: 3.0 oz / 85 g (without battery)
ADX20i
Transducer Type: Pre-Polarized Condenser
Frequency Response: 40 Hz - 20 kHz
Polar Pattern: Cardioid
Output Impedance: 250 ohms
Sensitivity:
- Cardioid: - 6 mV / Pa @ 1k
- Hypercardioid: - 5.6 mV / Pa @1k
Equivalent Noise Level: <29 dB (A-weighted)
Signal to Noise Ratio: >65 dB
Maximum SPL: ≥135 dB
Power Requirements: 9-52 V phantom
Connector: Shielded 6’ terminating to a miniature 3 pin XLRf Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish: Machined Brass Capsule / Black Finish
Weight: 48 g / 1.7 oz
Length: 29 mm / 1.14 in
