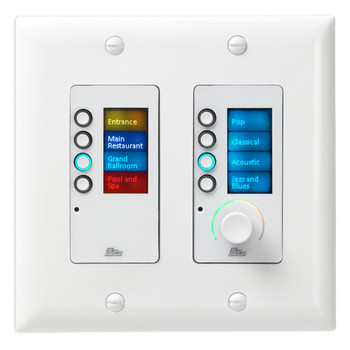

BSS Audio EC-8BV Ethernet Controller - WHITE [OPEN BOX]

The Soundweb Contrio EC-8BV is an Ethernet wall controller for use in Harman HiQnet systems. The EC-8BV can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers.

The EC-8BV is available in black or white, and in dual-gang US Decora. The EC-8BV contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-8BV is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect.

The EC-8BV contains one push/rotary encoder, one encoder ring, eight buttons, and two LCD screens. The buttons, encoder ring, and LCD screens are multi-color backlit, capable of eight different colors with adjustable intensity.

The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.

The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated, the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed, the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).

The eight buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection.

The two LCD screens each have a screen resolution of 64x128 pixels, and can each display custom text.

The EC-8BV supports ‘sleep’ functionality. After a specified amount of time with no user input, the EC-8BV can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will ‘wake up’ the controller.

The EC-8BV can be remotely locked and unlocked via other control systems. The EC-8BV can be locally unlocked via a four-digit PIN entry on the buttons.

The EC-8BV supports multiple modes of operation. This allows the push/rotary encoder, encoder ring, and certain buttons to be reassigned dynamically to different parameters based on which buttons are selected.

Features

• Ethernet Wall Controller
• Compatible with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices

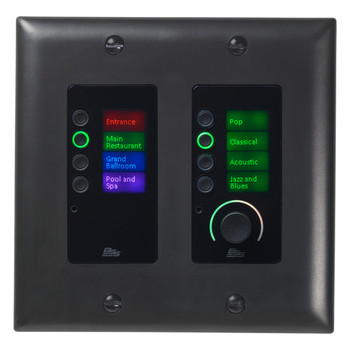

• Available in Black or White
• Available in Dual-Gang US Decora
• PoE (Power Over Ethernet)
• Configured within Audio Architect via Drag-and-Drop
• 1 Programmable Push/Rotary Encoder
• 1 Programmable Encoder Ring (Multicolored)
• 8 Programmable Buttons (Multicolored)
• 2 Programmable 64x128 Pixel LCDs (Multicolored)
• Sleep Function
• Security: Remote Lock/Unlock and Local Unlock via PIN Entry
• Multiple Modes of Operation
