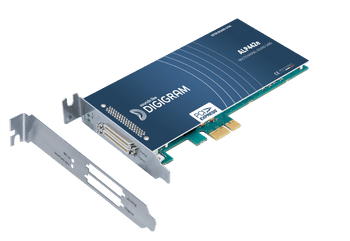

MULTI-CHANNEL LOW PROFILE PCIE SOUND CARD WITH MIC/LINE INPUTS
ALP442e-MIC
Universally acclaimed, unchanged Digigram features are still up to meet your challenges. Your favourite, trusted PCX and VX cards essentials still fuel the new Digigram ALP-X range.
Same quality, same high standards. A new technology core for this new cards range will push back the limits, offer enhanced performances, and simplify users’ daily routines with ALP-X sound cards.
ALP442e-MIC is a low-profile PCIe multichannel sound card designed for continuous 24/7/365 use environments, as part of professional audio applications based on Windows or Linux operating systems. The card offers analog and digital audio connectivity, and features an onboard 16×16-channel mixer that allows for the routing and mixing of inputs to the outputs.
The low latency drivers are multi-card (up to 8 ALP cards) and multi-client.
- For Windows and Linux
- Iconic Rock-solid & life-long
- Pristine Digigram sound quality
- Multi-applications
- Hiccup free reliability
Benefits
- Outstanding audio quality and performance
- Onboard high quality mic preamps
- Rock-solid, life-long, hiccup free reliability
- Fits in any type of PC / workstation / server with a PCIe slot
- Made for regular application or custom design with help of Digigram control API
- Drivers evolve with Windows and Linux updates
Specifications
FORMAT
- Dimensions
- L: 168 mm x H: 69 mm x l: 20 mm L: 6.6 inch; H: 2.7 inch; l: 0.8 inch
- Form Factor
- Low profile (standard and low profile brackets included)
- Expansion Bus
- PCI Express TM (PCIe TM) x1 (x2, x4, x8, x16 compatible)
DRIVERS
- Supported OS
- Windows (from Windows 10 and Server 2016) Linux (from Linux Kernel 4.9)
- Drivers
- Windows: Asio, Wasapi/DirectSound Linux: Alsa, Libgpiod
- One Driver Package
- Multi-application and multi-card API available
CONTROL PANEL
- Digigram ALP-X ASIO Settings (On Windows)
- Asio Control Panel: up to 8 ALP-X cards (intercard synchronization)
- Select I/Os used through Asio (others can be used through Wasapi)
- Digigram ALP-X Manager (On Windows)
- A unique control panel for the whole ALP-X range
- Manages up to 8 ALP-X cards
- Main functions
- Zero latency FPGA-based 16×16 mixer
- Adjustment of input and output levels
- Mixing before monitoring and recording (16 mix buses)
- Clock & sync selection
- GPIO status
HARDWARE SPECIFICATIONS
INPUTS
- Analog
- 4 balanced Mic / line level inputs
- A/D Converters: 24 bits / 192 kHz
- Line level
- Maximum input level/impedance: +24 dBu / >10 kΩ
- Adjustable analog gain: from -24 dB to +16 dB, in 0.5 dB steps
- Adjustable digital gain: from -90 dB to +12 dB in 0.1 dB steps
- Mic level
- Maximum input level/impedance: +10 dBu / >10 kΩ
- Adjustable analog gain: from -10dB to +56 dB, in 0.5 dB steps
- Maximum sensitivity: 0 dBfs for a -56 dBu input signal
- Switchable 48 V phantom power on each input
- Equivalent Input Noise: <-124 dB @ Gain +56 dB (48kHz)
- Digital
- 2 stereo AES3 inputs
- Adjustable digital gain: from -90 dB to +12 dB, in 0.1 dB steps
- Sample rate (kHz): 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192
- Hardware Sample Rate Converter frequency ratio: 1:8 to 7,5:1
- Others
- 1 AES11 synchronization input
- 1 Word Clock synchronization input
- 8 dry contact GPIs
OUTPUTS
- Analog
- 4 servo-balanced line outputs
- D/A Converters: 24 bits / 192 kHz
- Max level / Impedance: +24 dBu / <100 Ohms
- Adjustable digital gain: from -90 dB to +12 dB, in 0.1 dB steps
- Digital
- 2 stereo AES3 outputs
- Adjustable output gain: from -90 dB to +12 dB, in 0.1 dB steps
- Sample rate (kHz): 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192
- Others
- 8 relay GPOs (0.5 A, 48 VCC)
- 1 Word Clock output
ANALOG AUDIO PERFORMANCES
- Frequency response
- @48 kHz, 20 Hz-20 kHz
- Inputs : +/- 0.83 dB
- Outputs : +/- 0.57 dB
- SNR
- Inputs
- A-Weighted: >115 dBA
- Unweighted: >112 dB
- Outputs
- A-Weighted: >109 dBA
- Unweighted: >106 dB
- THD + Noise (@22 dBu /1 kHz)
- Inputs: <-98 dB @24 dBu
- Outputs: <-96 dB @24 dBu
- Crosstalk
- Inputs: @1 kHz / @15 kHz
- 128 dB / -107 dB
- Outputs: @1 kHz / @15 kHz
- -127 dB / -112 dB
- Channel phase (@1 kHz)
- Inputs: < 0.01°
- Outputs: < -0.02°
SAMPLE FORMAT
PCM (8, 16, 24, 32 and 32 float bits), Float IEEE754
CABLE & CONNECTORS SPECIFICATIONS
- Breakout cable for analog I/Os
- Length 1 m, XLR connectors
- Breakout cables for digital I/Os
- Length: 1 m
- XLR for I/Os and AES11 sync input
- BNCs for Word clock I/O
- 2 x D-Sub 25 for GPIs and GPOs
Inter board synchronization
SYNCHRONIZATION SOURCES
- Internal clock (kHz)
- 11.025, 16, 22.05, 24, 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192
- AES11 (kHz)
- 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192
- Word Clock input (kHz)
- 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192
Intercard clock* (possibility to connect up to 8 ALP-X cards linked with an inter-board sync cable)
