Description
Stereo to multi-stereo IP audio codec – IQOYA X/LINK-AES67

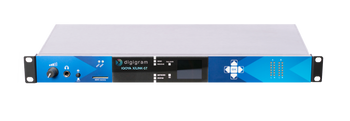

IQOYA X/LINK-AES67 is a 1U rack IP audio codec designed for live remote broadcasting and program distribution over IP. It is a perfect fit for delivering stereo and/or mono audio sources over IP networks, for STL, SSL, DVB audio, WEB radio applications and also for full-duplex live remote broadcasts. It is dedicated to full-IP audio infrastructures based on AES67, Ravenna, or Livewire (standard mode) technologies. Like all the IQOYA products, X/LINK-AES67 is based on Fluid IP, the Digigram technology for reliable and resilient audio transmission over all types of IP networks including inexpensive unmanaged IP networks. Based on a low consumption, fanless and powerful hardware platform, IQOYA X/LINK-AES67 is designed for 24/7/365 use.
Key points
- Designed for full IP audio environments (supports AES67, RAVENNA, and Livewire standard mode technologies)
- Scalable number of supported IP audio input and output channels (from 1 to 8 stereo I/Os)

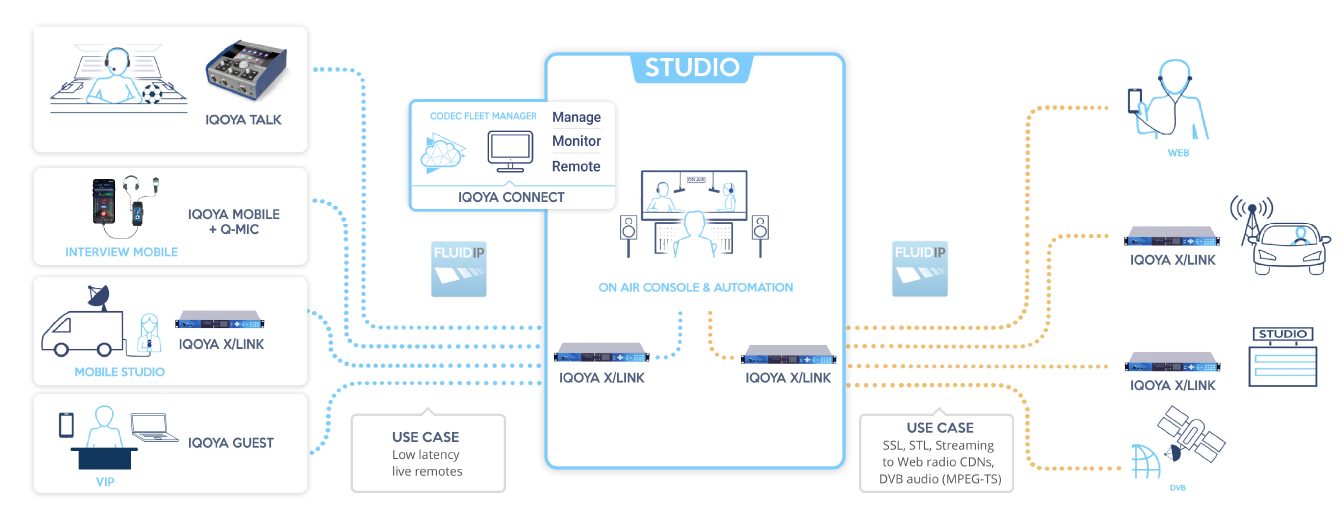

- Simultaneous delivery of input audio programs to transmitter sites, WEB radio CDNs, DVB multiplexers, and other studios, in multiple encoding and transport formats.
- EBU/ACIP compliance for interoperability with third-party codecs and any SIP infrastructure.

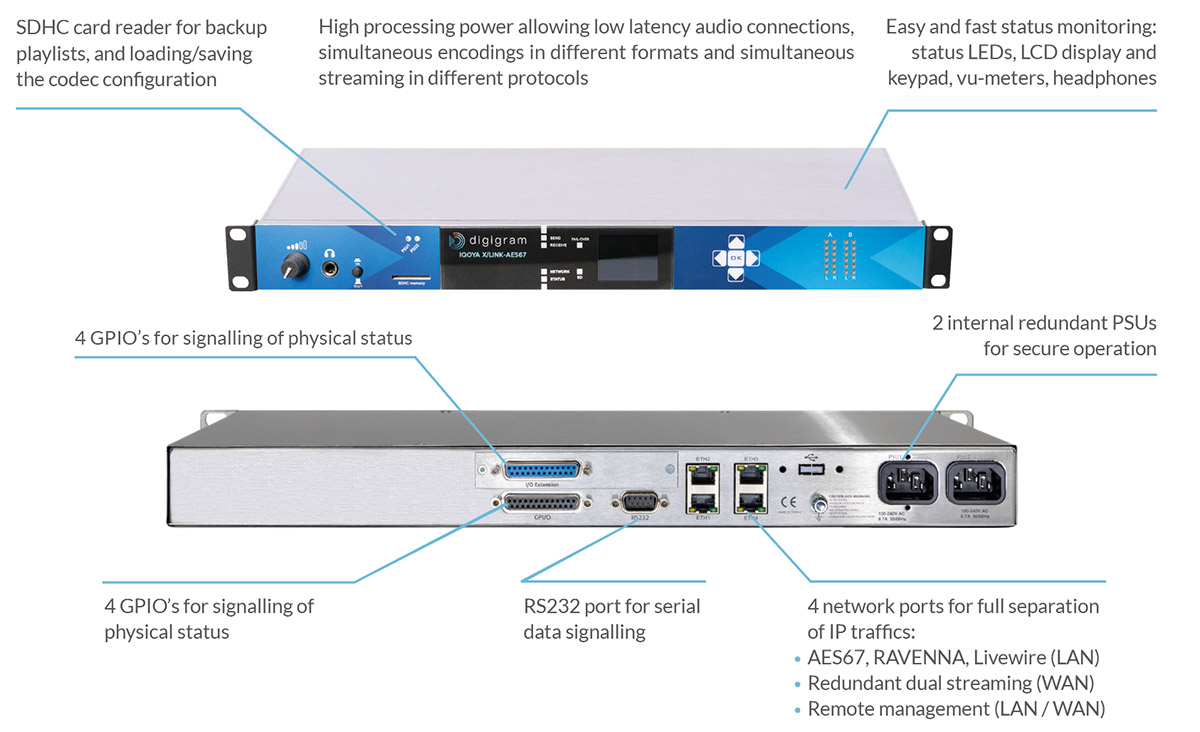

- Multiple levels of redundancy for audio service continuity and failsafe operation: 2 power supply units, 4 network ports with stream redundancy, audio failovers, audio hardware by-pass, and 1+1 hot device redundancy.
- Control and configuration via SNMP and Web services for easy integration with codec and network management/monitoring systems.
