Description
VX881e Multichannel PCM Sound Card
Key Workflow: Linear PCM multichannel stereo sound card for professional audio workstations.
VX881e is a professional linear (PCM) multichannel sound card based on the PCI Express bus interface. It is designed for use in any professional system running under Windows or Linux. It is a reference card in radio broadcast automation for applications such as automated recording and play-out and multichannel production.
At a glance
VX881e features eight input and output channels through AES/EBU connectivity, with the possibility to synchronize on an external clock (AES11, Word clock, black burst video). It can be used under Windows or Linux operating systems, with software applications based on standard driver interfaces such as WDM Kernel streaming, DirectSound, Wasapi, and ASIO for Windows, and Alsa for Linux.
- Developed for the broadcast industry
- AES/EBU connectivity
- Interoperable with most third party software applications for audio production, under Windows and Linux
Key features
- Multichannel linear PCM sound card
- PCI Express bus interface
- Four AES/EBU inputs/outputs, with hardware sample rate converter on each AES/EBU input
- Adjustable input and output digital gains
- On-board 3-band parametric EQ and Maximizer effects
- Support for Linux (Alsa driver) and Windows 32-bit and 64-bit (WDM Kernel streaming, DirectSound, Wasapi, ASIO)

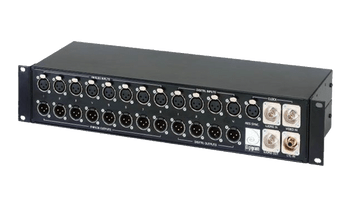

- Breakout cable or breakout box (BOB8) with XLR connectors for audio connectivity
Benefits
- Low OPEX: low failure rate and high reliability
- Low TCO & future-proofed
- Ongoing product support: from Digigram and its Development Partners
Specifications
Configuration
- Bus/Format: PCI EXPRESS™ (PCIe®) x1 (x2, x4, x8, x16, x32 compatible)
- Size: 168 mm x 111 mm x 20 mm
- Power requirements (+3.3V / +12V): 1.3A / 0.02A
- Operating: temp / humidity (non-condensing): 0°C/+50°C • 5%/90%
- Storage: temp / humidity (non-condensing): -5°C/+70°C • 0%/95%
Inputs
- Digital inputs (stereo): 4 AES/EBU with hw Sample Rate Converters, 7.5:1 to 1:8, up to 192 kHz
- Programmable input gain: digital:from –110 dB à +18 dB
- Other inputs: AES/EBU Sync (up to 192 kHz), Word clock (up to 96 kHz), LTC, Video
- AES11 synchronization: Yes
Outputs
- Digital outputs (stereo): 4 AES/EBU, up to 192 kHz
- Programmable output gain: from –110 dB to +18 dB
- Other outputs: Word clock (up to 96 kHz)
Connectors
- Internal connectors: Inter-board Sync
- External connector: 68-pin SCSI MDR
- Digigram accessories available: Breakout cable or 2U 19″ Breakout Box
Audio specifications
- Sampling frequencies available: Programmable from 22.05 to 192 kHz
- Supported audio formats: PCM (8, 16, 24 bits), Float IEEE754
Development environments
- Digigram management: np SDK (PCM only)
- Other management: Wave, ASIO, DirectSound,WASAPI, ALSA
- OS supported: Windows 32bit and 64 bit versions, Linux
- Main on-board processing features (available through the Digigram np SDK): PCM play, rec, Float IEEE754, direct monitoring, real-time mixing, level adjustment, panning, cross-fade, punch-in/punch-out, scrubbing
