Description
C-LOADER Software Uploader

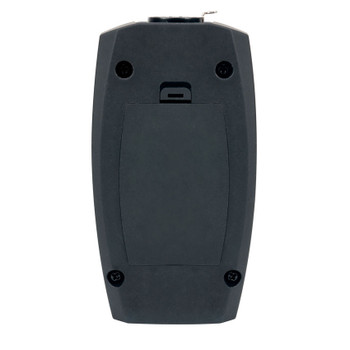

The C-LOADER™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin DMX cable (not included). Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader.
C-LOADER features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX output, an On/Off switch, and includes battery, USB cable, USB to MICRO SD card adapter, and blank MICRO SD card.
Specifications
CONTROL / CONNECTIONS
- 6 Button Touch Control Panel
- LCD Menu Display
- 3pin DMX Out
- MICRO SD Card Slot
- Mini USB Input
SIZE / WEIGHT
- Length: 4.89” (124.15mm)
- Width: 2.73” (69.46mm)
- Vertical Height: 1.48” (37.5mm)
- Weight: 0.4 lbs. (0.2 kg)
ELECTRICAL
- USB Powered (Internal Battery)
INCLUDED ITEMS
- USB Cable
- MICRO SD Card
- USB to MICRO SD Card Adapter
COMPATIBLE ELATION MODELS*
*Partial listing of models. Contact Elation Service to check if your model is supported.
- ACL BAR
- ACL 360 MATRIX
- ACL 360 ROLLER
- ACL 360i
- ACL 360 BAR
- ACL CURTAIN
- ACL PAR 200
- ACL PAR 200 IP
- COLOUR CHORUS 12 / 24 / 48 / 72
- CUEPIX BATTERN
- CUEPIX BLINDER WW2 / WW4
- CUEPIX PANEL
- CUEPIX PAR 300
- CUEPIX STRIP TRI / WW
- DW CHORUS 12 / 24 / 48 / 72
- DTW BAR 1000
- DTW BLINDER 350 IP / 700 IP
- DTW PAR 300
- DW PAR Z19 IP
- FUZE PAR Z60 IP / Z120 IP
- FUZE WASH Z120 / Z350
- SIXBAR 500 / 1000 / 1000 IP
- SIXPAR 100 / 200 / 300
- SIXPAR 100IP / 200IP / 300IP
- SIXPAR Z19 IP
- ZCL 360 BAR
- ZCL 360i
- ZCL BAR Z300 IP
