Description

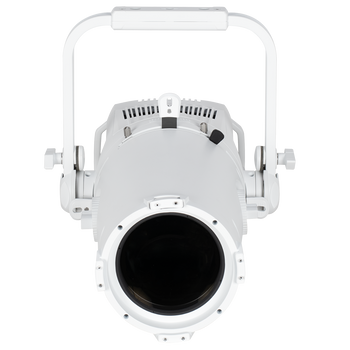

KL PROFILE FC Fresnel Lens
The KL PROFILE FC Fresnel Lens is an optional accessory lens which offers the ability to convert the KL Profile FC from it’s native projection optic to a smooth Fresnel wash.
With the Fresnel lens installed the fixture provides a smooth, even wash with gentle falloff that includes internal framing for more precise beam shaping control than a barn door would provide.
The zoom and focus system of the KL PROFILE FC provide a seamless 7˚ to 45˚ beam angle when the Fresnel lens is installed.
The lens allows to mix profile and fresnel fixtures in the same system, while keeping the same housing design and perfect color match. Consistent appearance and light quality are critical for venues like Orchestra Halls and Auditoriums where the fixtures are exposed, and the aesthetics of a uniform fixture housing are important.
Features
- Manual Zooming Fresnel
- Extended Color RGBMA LED Engine, 92 CRI
- Exceeding 9.500 lumens
- Full Blackout Manual Framing System
- Wide Zoom Range from 7° to 45°
- 7.5” Front Accessory Holder
- Includes 7.5" Gel Frame
Specifications
- PHOTOMETRIC DATA
- 9761 Total Lumen Output
- Zoom Range 7° - 45°
- Beam Angle 6.7° - 43.7°
- Field Angle 11.1° - 61.8°
- SIZE
- 7.5” Front Accessory Slot
