Description
H9000
Powerful Multi-FX Processor
Next Generation Harmonizer®
Eventide’s flagship multi-effects processor, the H9000, continues our unbroken tradition of delivering industry-leading signal processing power to the pro audio community. The culmination of nearly fifty years of R&D, the H9000 comes loaded with over 1600 unique algorithms from recreations of beloved classics to Eventide’s latest and greatest effects. The wealth of included effects will offer users many years of exploration and inspiration.
The H9000 is available in two versions, the standard H9000 and the H9000R. The H9000 with full front panel UI is priced at $7,999. The blank front panel H9000R is priced at $5,999 and requires Emote for operating.
Features
- Four quad core ARM processors: 16 DSP engines
- Analog audio I/O: 8 channels
- USB audio: 16 channels
- AES/EBU, ADAT, S/PDIF: Up to 8 channels
- World-class USB audio interface
- Expandable I/O: Three expansion slots for additional audio connectivity, giving you an additional 32 channels per expansion card.
- Hardware Meters: 8 assignable LED meters – front panel version only
- Emote control software app for Mac & PC is available as a standalone app or AAX, VST, AU plug-in
- FX Chains: Innovative approach for setting up and managing complex effects
- Direct I/O: Virtual patchbay lets you route any set of inputs to any set of outputs with the click of a mouse
- Comprehensive Live Controls: MIDI, Expression Pedals, Auxiliary Switches and USB controllers
- Preset portability: Store and recall presets using USB thumb drives
- Network Connectivity via LAN or WiFi
Specifications
Analog Audio I/O
- Physical Connections
- Stereo I/O via XLR
- 8 Channel I/O via DB25 (Tascam standard)
- Audio Specs
- SNR (A Weighted):
- 44.1 kHz: >114dB
- 48 kHz: >114dB
- 96 kHz: >114dB
- THD:
- 44.1 kHz: <0.002%
- 48 kHz: <0.002%
- 96 kHz: <0.002%
- The H9000’s XLR analog audio output jacks are male.
- Pin #1 is ground.
- Pin #2 is +phase (hot).
- Pin #3 is -phase.
Digital Audio I/O
- Sample Rate
- 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
- Digital Inputs/Outputs
- 16 Channels of USB audio. 44.1 kHz – 96 kHz.
- USB can be used in conjunction with any other Digital I/O.
- AES DB-25: 8 channels of AES 24-bit at 44.1 kHz – 96 kHz. Tascam standard.
- AES XLR: 2 channels of AES at 44.1 kHz – 96 kHz
- S/PDIF RCA: 2 channels at 44.1 kHz – 96 kHz
- S/PDIF Optical: 2 channels (Only 44.1 kHZ and 48 kHz)
- Optical (Toslink): 8 channels of ADAT (Only 44.1 kHZ and 48 kHz)

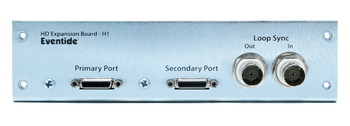

Optional Audio I/O
- Expansion Slots 3
- Dante Support Yes
- MADI Support Yes
- Pro Tools HD Support Yes
Control I/O
- Remote Control Inputs
- Up to four foot pedals, or four 5V control voltage sources, or six foot switches, or combination.
- 2 TRS 1/4″ inputs.
- The sleeve is ground reference, the ring is +5 volts (source), and the tip is an analog signal from 0 to 5 volts. Connect either foot switches, foot pedals, or control voltage sources.
- Remote Control Outputs
- 2 isolated relay closures, rated at 30Vdc 1A. Relay #1 is connected between ring and sleeve, while Relay # 2 is connected between ring and tip. These connections are electrically isolated from the H9000.
- MIDI Connections
- 5 pin DIN input, output, and thru
- USB A and USB B
Physical
- Size
- Inches: 3.5h x 19w x 12.5d
- Metric: 8.9h x 48.3w x 31.7d
- Weight
- 14 pounds (6.4kg) net
