Description
HIGH-EFFICIENCY PROFESSIONAL SUBWOOFER
ACTIVE SUBWOOFER

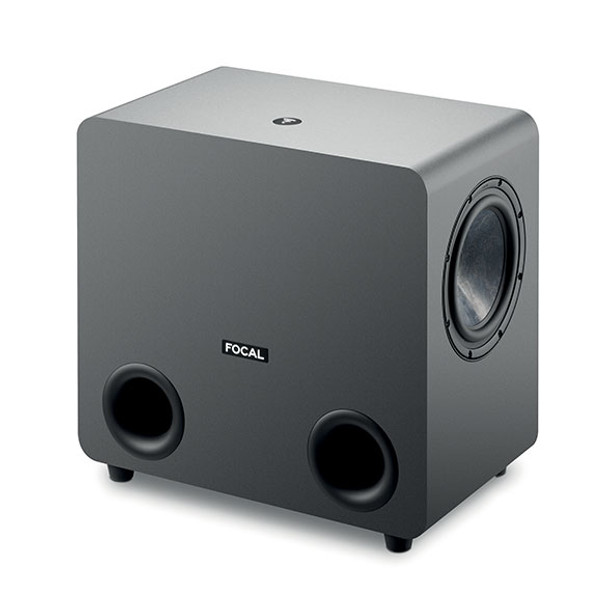

For producers and sound engineers with higher demands in the sub-bass, Focal offers Sub One, a subwoofer that delivers power of 200W RMS. Thanks to its precision and very low distortion, this long-excursion, high-efficiency subwoofer ensures ideal coupling with the Alpha Evo line but also the Shape line of monitors.
The speaker drivers boast an exclusive double-skinned Slatefiber cone: the two cones affixed against each other offer even greater rigidity, ideal for a subwoofer. Finally, with its large vents located on the front panel, Sub One is very easily and discreetly positioned along a wall or under a desktop as it takes up less depth.
KEY POINTS
- 2 x 8” (20cm) woofers with Slatefiber cone made in France
- 200 W RMS amplifier
- Sound neutrality, precise control of bass equalisation
- Compact design, optimal integration
- Multiple settings: low-pass crossover, volume, Footswitch input, etc.
- LFE, left and right inputs / left and right outputs
- Reproduction of sonic micro-details; precise adjustment of signal compression
Specifications
- Type Sub One
- Frequency response (+/-3dB) 32Hz – 120Hz
- Maximum SPL 114dB SPL (peak @ 1m)
- Inputs
- Left, Right, LFE
- Electronically balanced / 110kOhms
- 3-point female XLR
- Variable
- Outputs (to satellites) Left + Right
- 3-point male XLR in parallel on inputs
- Amplification 2 x 100W RMS, D-class
- Internal signal processing and functions
- Left + Right mono summation
- 60Hz or 90Hz high-pass crossover
- Adjustable low-pass crossover,
- 24dB/octave
- Phase adjustment
- Polarity
- User controls
- Subwoofer level adjustment (sensitivity)
- Low-pass crossover cut-off frequency adjustment
- Phase adjustment
- Polarity inverter
- External mute (controlled by a pedal)
- Indicators (LED) Power
- Power supply Universal detachable IEC inlet power cord
- Subwoofer 2 x 8" (20cm) long-excursion Focal speaker drivers with “Slatefiber” cone
- Construction 7/8" (22mm) MDF panel with internal braces
- Finish Dark grey vinyl
- Dimensions (HxWxD) 183/4"x113/4"x193/4"(475x310x520mm)
- Weight 40.8lbs (18.5kg)
