Description

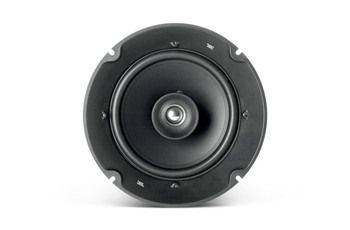

6.5" Ceiling Loudspeaker Transducer Assembly
The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.
Features
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
- High power, wide frequency response and low distortion for high sound level capability.
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
- Sold in Pairs
Specifications
Frequency Range: 75 Hz - 20 kHz
Power Capacity: 150 W Continuous Program Power; 75 W Continuous Pink Noise
Nominal Sensitivity: 89 dB, 1m/1 W
Nominal Coverage Angle: 110°
Directivity Index (DI): 4.6 averaged 500 Hz to 4 KHz
Nominal Impedance: 16 ohms
Rated Maximum SPL: 107 dB SPL @ 1m (3.3 ft)
Low Frequency: 165 mm (6.5 in)
High Frequency: 19 mm (.75 in) titanium
Terminations: Screw locking barrier strip
Dimensions (H x Dia): 210 mm x 252 mm (8.3 in x 9.9 in)
Net Weight (ea): 2.7 kg (6 lbs)
Shipping Weight (pair): 6.4 kg (15 lbs)
