Description
In multiple subwoofe systems, control signals, such as volume control signals, must be transmitted to all subwoofers to ensure that they all deliver the volume set for the whole system.
The SEA 1 subwoofer EtherCon adapter facilitates the connection of several subwoofers to a single NRC 1 or NRC 2 remote control or to any RS-232 data source.
The subwoofer EtherCon adapter is a small Black Aluminum box with 4 Neutrik EtherCon sockets. One SEA 1 can serve as a control data hub for up to 3 subwoofers. For larger systems, several SEA 1 can be used. The SEA 1 is compatible with Neumann RC cables or standard CAT5 cables. Remote cables (RC nn) must be purchased separately.
Recommended For

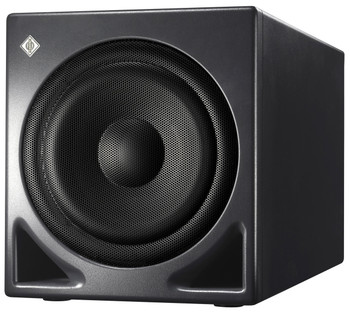

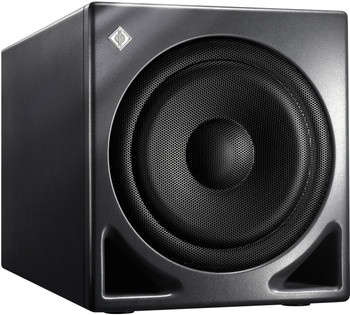

- KH 810 Active Studio Subwoofer

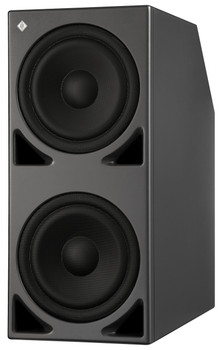

- KH 870 Active Studio Subwoofer
- O 810 Active Studio Subwoofer
- O 870 Active Studio Subwoofer
Specifications
Electrical
Connections 4 x Neutrik EtherCon RJ45 socket
Supported volume controls NRC 1, NRC 2, RS-232
Recommended max. number of connectable SEA 1 4 (Supports up to 9 subwoofers))
Mechanical
Housing Material Aluminum and ABS
Housing Color Black
Height x width x depth 80 x 84 x 40 mm (3 1/8“ x 3 1/4“ x 1 5/8“)
Weight 175 g (0.4 Ibs)
