Description

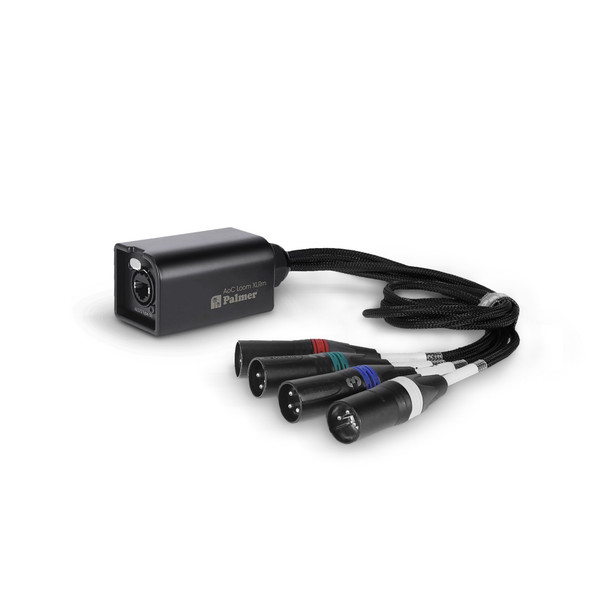

AoC Loom XLRm
Audio over Cat Loom from etherCON to 4 x XLR male
- 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included)
- etherCON to 4 x XLR male
- AES72 Type 5E
- Compatible with 48-volt phantom power
- Premium Neutrik components
- Robust mesh cable, 0.5 m
- Solid casing made of aluminium and steel
- Engineered in Germany
The P AOC L XLR M is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals or 8 digital AES3 signals through a network cable (not included). The male XLR plugs are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.
In addition to audio signals, the P AOC L XLR M enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.
Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L XLR M guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.
All these factors make the P AOC L XLR M a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.
Specifications
- Product type Audio over Cat adapter
- Number of inputs 4
- Input type Balanced
- Source select RJ45
- Number of outputs 4
- Output type Balanced
- Output connector 3 pin XLRm
- Material Aluminium, Steel
- Cable Length 0.5 m
- Width 128 mm
- Depth 140 mm
- Height 50 mm
- Weight 0,38 kg
- Operating Temperature -20 - 70 °C
- Air humidity > 80 % (non-condensing)
Audio
- Max. input level (< 1% THD, 1 kHz) + 32 dBu dBu
- Frequency range 0 Hz - 20 kHz
- THD (1 kHz, +4 dBu, unity, unweighted) < 0,0005 %
RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
- Pin 1 Channel 3 -
- Pin 2 Channel 3 +
- Pin 3 Channel 4 -
- Pin 4 Channel 1 +
- Pin 5 Channel 1 -
- Pin 6 Channel 4 +
- Pin 7 Channel 2 -
- Pin 8 Channel 2 +
Channel color code
- Channel 1 Red
- Channel 2 Green
- Channel 3 Blue
- Channel 4 White
