Description
M8-AV Power Conditioner
M8-AV eliminates voltage irregularities & protects your AV system.
Home Theater Power Management
AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. M8-AV eliminates voltage irregularities & protects your AV system.
Surge Protection
Panamax’s patented AVM circuitry continuously monitors the incoming line voltage and disconnects your equipment in the event of an over voltage or undervoltage (brownout). Power is automatically reconnecte dwhen voltage returns to a safe level, eliminating service calls or system downtime.
Improves Picture & Sound Quality
The M8-AV’s Power Cleaning and Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

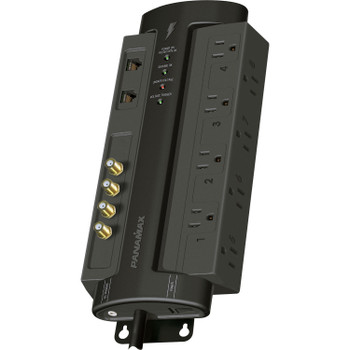

(Panamax Max 8 AV – 8 AC; Coax and Tel; AVM, Line Filtration)
Features
- Cable/Sat Protection - Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.
- Telephone Line Protection - Protects equipment from electrical surges that travel over telephone lines.
- AVM - Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.
- Surge Protection - Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
- 8 Outlets - Eight (8) filtered and surge protected outlets for all of your power needs.
- Hi Def Ready - Hi-Def Designed to work with your High Definition system
Specifications
- Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
- Thermal Fusing: Yes
- Single Pulse Energy Dissipation: 1650 Joules
- Response Time: 1ns
- Peak Impulse Current: 52,000 Amps
- Patented Power Management Circuit: Yes
- Telco Protection
- Wires Protected: 2 wire, 1 pair (3,4)
- Suppression Modes: Metallic & Longitudinal
- Fuseless / Auto-reseting: Yes
- Connectors: RJ-11
- Clamping Level: 260V
- Capacitance: 30 pf (approx.)
- Universal Coaxial Protection
- Shielded: Yes
- Insertion Loss: < 0.5 dB
- Frequency Range: 0MHz – 2.2 GHz
- Connections: Female “F”, Gold Plated
- Clamping Level: 75V
- Bidirectional: Yes
