Description
Passive Line-Level Splitter
The Radial LX-3™ is a high-performance balanced line-level splitter designed to send one audio signal to as many as three destinations at once.
Features
- Send one audio signal to three destinations simultaneously
- Jensen transformer-equipped for exceptional audio quality
- Eliminates hum and buzz caused by ground loops
- Combo jack input for 1/4″ TRS or XLR sources
Pristine audio splitting
The LX-3 makes use of a premium Jensen transformer to leverage the industry's best combination of frequency response, signal level handling, and low distortion, providing the highest possible signal quality. It features two isolated outputs to eliminate hum and buzz from ground loops, along with a third direct output. All three XLR outputs have ground lift switches for additional noise suppression, and a switchable -12dB input pad allows you to connect even the hottest line outputs without fear of overloading or distortion. The input of the LX-3 is accessed with an XLR/TRS combo jack, which allows you to connect via balanced or unbalanced cables; the LX-3 will automatically balance the signal at the isolated outputs, preventing interference and signal degradation over long cable runs.
LX-3 Applications
- Send one mono signal to multiple headphone mixes - Split a click track output to three personal monitor mixers on stage
- Split the output of a mic preamp in the studio - Send the output of a single preamp to three different compressors or effects units, opening the door to numerous creative possibilities.
- Split a mono console feed to multiple devices - Send production audio or a live board feed to up to three different portable recording devices at once.
Specifications
The LX-3 is a simple yet very powerful problem-solving device. It allows you to split any line-level signal to up to three destinations simultaneously without signal degradation or noise. The heart of this unit is the Jensen® JT-123-FLPCH transformer, which boasts an exceptionally wide bandwidth, low distortion, and minimal deviation from linear phase. Two isolated outputs help eliminate buzz and hum from ground loops, and an input pad allows very hot line-level signals to be used without distortion. An additional direct output is also available for connection to a third destination, and all outputs have ground lifts for further noise abatement. A 14-gauge solid steel enclosure helps protect against signal interference and prevents the circuit board from being torqued.
- Audio circuit type: Passive, transformer based
- Transformer: Jensen JT-123-FLPCH
- Number of channels: 1 In, 3 Out
- Frequency response: 20Hz - 20kHz +/-0.5dB
- Dynamic range: 140dB
- Gain: -1.5dBu
- Phase Deviation: +0.6° @ 20Hz
- Input Impedance: 712Ω
- Output Impedance: 112Ω
- Common Mode Rejection Ratio: 105dB @ 60Hz, 70dB @3kHz
- Noise: -120dBu
- Maximum Input: +20dBu
Features
- Input pad, Ground lift
- Input Connectors: Combo XLR / 1/4"
- Output Connectors: XLR iso and direct
General
- Construction: 14-gauge steel
- Size (L x W x D): 84mm x 127mm x 48mm (3.3" x 5" x 2")
- Weight: 0.7kg (1.5lbs)
- Shipping size (L x W x D): 102 x 76 x 165mm (4" x 3" x 6.5")
- Shipping weight: 0.87 kg (1.92 lbs)
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable

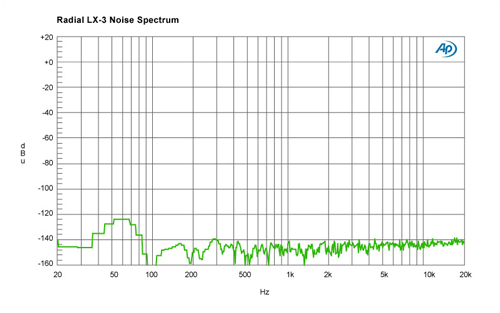

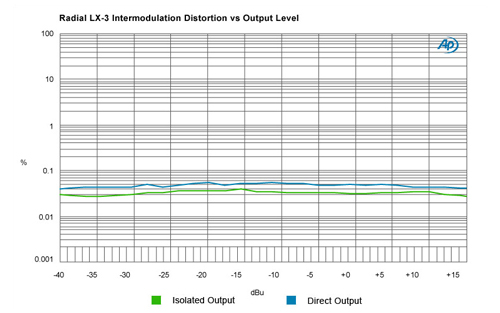

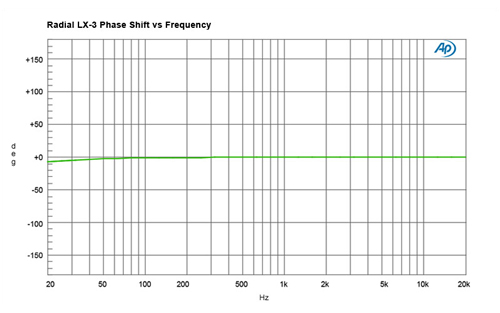

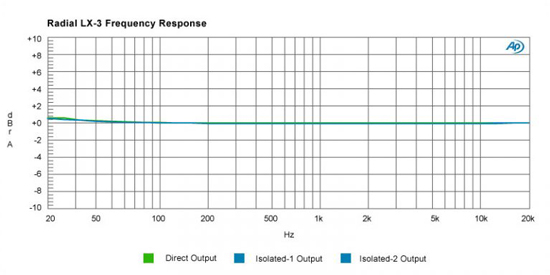

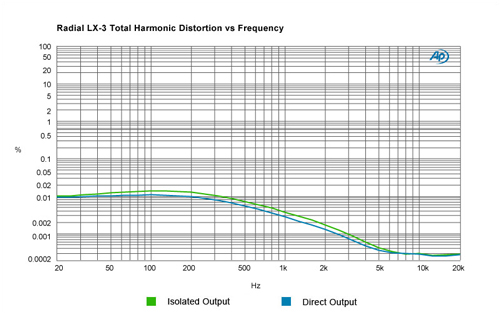

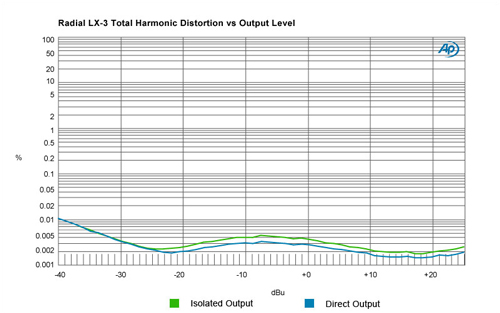

Graphs
