Radial Studio-Q Studio Talkback Controller

(No reviews yet) Write a Review
SKU:
R800 1435
UPC:
676101044474
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
Availability:
Usually ships within 24 hours
  • Radial Studio-Q Studio Talkback Controller - Top

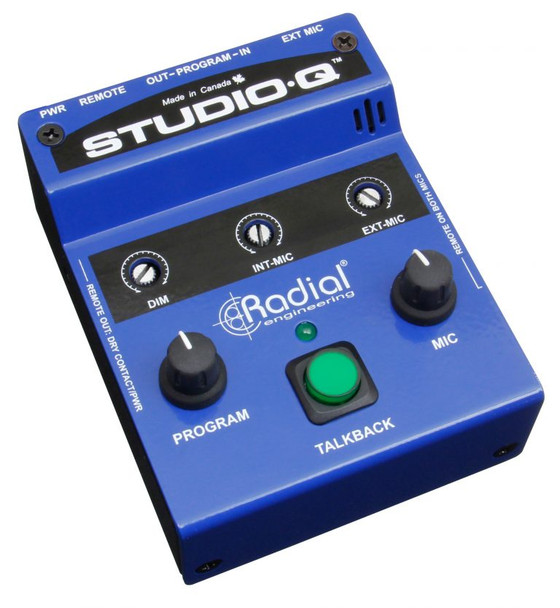

  • Radial Studio-Q Studio Talkback Controller - Left
  • Radial Studio-Q Studio Talkback Controller - Right
  • Radial Studio-Q Studio Talkback Controller - Panel
$349.99

Description

Desktop Cue & Talkback Controller

The Studio-Q™ is a compact studio talkback controller that provides a simple yet full-function cue system that allows easy communication with artists in a separate room or vocal booth.

Features

  • Compact desktop cue system for studio recording
  • Allows engineer & producer to talk to artists
  • Built-in microphone and external mic input
  • Improves studio efficiency and communication
  • Dry Contact/Power-Sets the remote output to be a ‘dry’ contact closure or carry voltage to power a Beacon.
  • Dim-Lowers the program volume to the desired level when the talkback mic is active.
  • Program-Used to set the level of the incoming pre-recorded tracks to the headphone system.
  • Int-Mic Trim control used to adjust the internal capacitive microphone.
  • Engages both the internal and external microphone (if connected) and dims the program level.

Better communication for better recordings

The Studio-Q allows you to professionally and easily communicate with artists that are in a separate live room or vocal booth, streamlining your studio workflow and improving the recording experience for the artist. Simply press the talkback button and a built-in omnidirectional microphone will activate, while at the same time lowering audio playback so you can be heard easily through the cue system. An external dynamic microphone can also be connected as an alternate talkback source, and a footswitch can be added for hands-free remote operation.

Studio-Q Applications

Home studio setup

Use the Studio-Q to add talkback functionality to your system. Now you can communicate seamlessly with an artist on headphones in a separate room.

Adding a beacon

The remote Beacon can be connected via ¼" cable, illuminating whenever the talkback button is pressed. This gives an additional visual indication that the engineer or producer is trying to communicate over the cue system.

Using an external microphone

The XLR mic input on the Studio-Q allow a second microphone to be used so a producer or band member can also communicate with the artist in the booth. This can be controlled with a separate footswitch for easy hands-free operation.
View AllClose

Specifications

Specifications

  • Audio circuit type: Active with FET dim circuits
  • Number of channels: Mono or Stereo operation
  • Frequency response: 20Hz - 20kHz ±0.5dB
  • Dynamic range: 106dB
  • Gain: +45dB (EXT mic input)
  • Total harmonic distortion: <0.007%
  • Intermodulation Distortion: <0.005%
  • Input Impedance: 20 kΩ (Program), 2 kΩ (EXT mic)
  • Output Impedance: 225 Ω (1/4" output)
  • Noise: -86dBu
  • Mximaum Input: +14dBu (Program)

Features

  • Extras: Dim Attenuation: -6dB to -80dB

General

Block Diagram

Graphs

Frequency Response
