Description

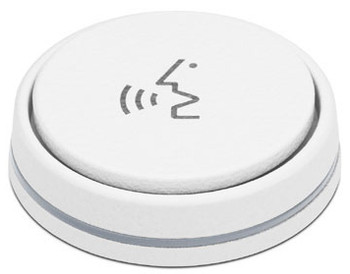

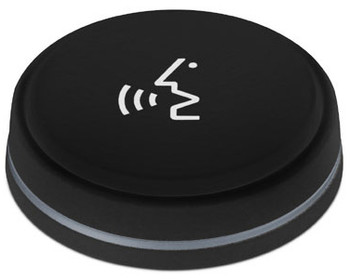

The MAS 133 is a versatile XLR inline switch box for integrated microphone solutions. Attached between the mic and mixing console, it powers the MAS 1
microphone button. It is able to control any XLR-connected microphone using switchable microphone modes (PTT, PTM, toggle on/off, permanent on). Furthermore, the MAS 133 features a TTL logic, enabling the user to trigger e.g. camera or media control systems for various purposes.
Features
- Inline switch box for integrated
- mic solutions
- Easy microphone activation
- Switchable microphone modes (PTT, PTM,
- toggle on/off, permanent on)
- TTL Logic out for media control
- Made in Germany
What's in the box?
- MAS 133
- Mounting hardware
- Quick guide
Specifications
Phantom power P 48
Current consumption 4.5 mA
Connectors Mic In – XLR-3F
Connectors Mic Out – XLR-3M
Connectors Switch In – XLR-5F
Pin assignment XLR-3M out 1 = gnd
Pin assignment XLR-3M out 2 = +
Pin assignment XLR-3M out 3 = −
Pin assignment XLR-5F in 1 = gnd
Pin assignment XLR-5F in 2 = Switch
Pin assignment XLR-5F in 3 = LED red −
Pin assignment XLR-5F in 4 = LED green −
Pin assignment XLR-5F in 5 = LEDs + 12 V out
Microphone modes Toggle on/off
Microphone modes Push to mute
Microphone modes Push to talk
Microphone modes permanent on
Connection clip contact
Pin assignment logic connector Trigger signal at the logic connector: Mic (on/off), GND, Switch (on/off)
Logic out high level output voltage > 2.4 V
Logic out low level output voltage < 0.4 V
