Description

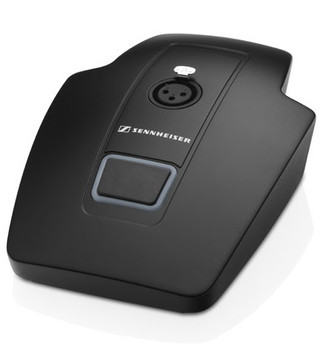

Featuring a rugged housing, the functionally and unobtrusively designed MAT 153 provides a solid ground for gooseneck microphones with lighting ring.
Connector:
MIC IN: XLR-5F
MIC OUT: XLR-3M
3x terminal
Features
- Powered with standard XLR-3 cable
Specifications
- Colour black
- LED light ring: red / green
- Connector
- Mic in: XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (−), 4 = LED (−), 5 = LED (+)
- Mic out: XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = −
- Connector Clip contact: Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
- Weight approx. 1,206 g / 1526 g
- Current consumption 3.7 mA
- Output voltage
- Logic out: high level output voltage > 2.4 V, low level output voltage < 0.4 V
- Logic in: high level input voltage > 2.0 V, low level input voltage < 0.8 V
