Description

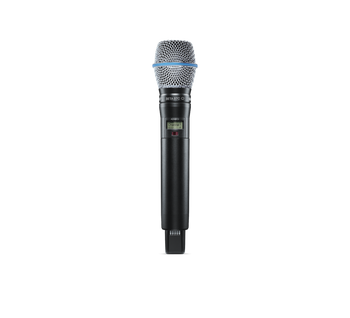

ADX2FD/K8
Handheld Wireless Microphone Transmitter
ADX2FD/K8, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
FEATURES
- Ability to transmit RF signal on two discrete carriers
- Optional 50mW High Power mode for driving increased power on a single frequency
- Durable, moisture-resistant, lightweight metal case in black or nickel finish
- Up to 6.5 hours of runtime with SB920 rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
Specifications
- Gain Offset Range –12 to 21 dB (in 3 dB steps)
- Battery Type SB920 Rechargeable Lithium-Ion
- Battery Run Time @10 mW
- Single-Carrier Mode: up to 9 hours
- Frequency Diversity: up to 6.5 hours
- Dimensions (L × Dia.) 10.0 × 2.0 in (254 × 51 mm)
- Weight 11.9 oz (338 g) wihtout battery
- Housing Cast Aluminum
AUDIO INPUT
- Configuration Unbalanced
- Maximum Input Level 1 kHz at 1% THD 145 dB SPL, typical (SM58)
Note: dependent on microphone type
RF OUTPUT
- Antenna Type Integrated Dual-Band Helical
- Occupied Bandwidth <200 kHz
- Channel-to-Channel Spacing
- Standard Mode: 350 kHz
- High-Density Mode: 125 kHz
- Modulation Type Shure Axient Digital Propietary
- Power
- Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW
- Frequency Diversity Mode: 2 × 20 mW; Varies by region
- Specific Absorption Rate (SAR) <0.21 W/kg
SHOWLINK®
- Network Type IEEE 802.15.4
- Antenna Type ZigBee Dual Conformal
- Frequency Range 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power 10 dBm (ERP)
