Description

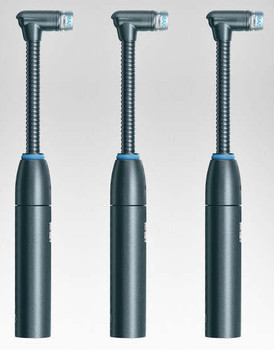

The Shure BETA®98AMP is a precision-engineered miniature cardioid condenser microphone for professional sound reinforcement and studio recording. Features an integrated XLR preamplifier with a flexible gooseneck and the A75M Universal Microphone Mount for accurate placement in any configuration of toms, snares, or percussion. An extremely uniform cardioid polar pattern provides excellent gain-before-feedback, off-axis rejection of unwanted noise, and high maximum sound pressure level (SPL).
Features
- Uniform cardioid polar pattern provides maximum gain-before-feedback and rejection of off-axis sound for smooth high-end response and control
- Precision-engineered design features integrated preamplifier and XLR connector to maximize setup efficiency while minimizing stage clutter
- Frequency response tailored for drums and percussion applications with a wide dynamic range for use in high SPL environments
- Flexible gooseneck for precise placement and easy adjustment
- Ships with A75M Universal Microphone mount with quick release, for versatile and secure instrument and/or stand mounting
- Furnished with snap-fit windscreen and zipper pouch
Specifications
- Type: Electret Condenser
- Frequency Response: 20 to 20,000 Hz
- Polar Pattern: Cardioid
- Output Impedance: 150 Ω
- Sensitivity, at 1kHz, open circuit voltage, typical:
- -50.5 dBV/Pa(2.5 mV) [1]
- Maximum SPL
1 kHz at 1% THD [2] - 2500 Ω load 157.5 dB SPL
- 1000 Ω load 153.0 dB SPL
- Signal-To-Noise Ratio [3] : 63 dB
- Dynamic Range
at 1kHz - 2500 Ω load 126.5 dB
- 1000 Ω load 122.0 dB
- Clipping Level
at 1 kHz,at 1% THD - 2500 Ω load 12.5 dBV
- 1000 Ω load 7.5 dBV
- Self Noise, equivalent SPL,A-weighted,typical
- 31.0 dB SPL-A
- Common Mode Rejection, 10 Hz to 100 kHz
- ≥60 dB
- Power Requirements: 11–52 V DCphantom power[4], 5.5 mA
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Net Weight: 130 g(4.6oz.)
