Description
P8
Eight-channel microphone preamplifer with discrete technology
P8 is equipped with eight identically designed microphone preamplifers. All eight preamps have a discrete design – without ICs, made of individual transistors. This is typical for absolute high-end preamplifers and is one of the main reasons for the outstanding sound.
Besides an analog gain control for adjusting the preamplifcation, each of the eight preamps features an individually switchable phantom power supply (48 V), a PAD switch, a phase inversion function and a switchable analog high-pass flter.

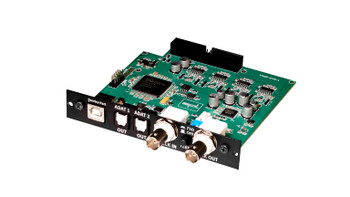

With the optional eight-channel ADAT converter, the purely analog P8 can be digitally connected to an audio interface.
P8 paves the way for high-quality multi-channel recording sessions.
Specifications
Analog input & output; XLR & DB25 (balanced)
- Maximum input level (Mic, +8 dB – +62 dB) 13,5 dBu
- Input impedance (Mic/Line) 10 kΩ
- Output impedance 75 Ω
- Frequency range 15 Hz – 200 kHz
- Equivalent Input Noise (EIN) -124 dBu
- Noise (A-weighted, Mic Preamp, 150 Ω, 30 dB Gain) -94 dBu
- Noise (A-weighted, Mic Preamp, 150 Ω, 62 dB Gain) -66 dBu
- Common mode rejection ratio (CMRR, 1 kHz) Mic Input < 78 dB
- THD+N Ratio (1 kHz), Mic 30 dB Gain 0,003 %
- THD+N Ratio (1 kHz), Mic 63 dB Gain 0,022 %
- Signal display
- Green -25 dBu
- Yellow 0 dBu
- (without AD converter) Red +19 dBu
- -3 dBFs (with AD converter) +12 dBu
Internal Linear Power Supply with Shielded Toroidal Transformer
- Operating voltage for audio electronics +/-18 V
- Operating voltage for relays and LEDs +12 V
- Phantom power +48 V
- Operating voltage AD converter card +12 V / +3,3 V
Mains Power Supply
- Mains voltage (selectable, see fuse chamber) 230 V AC / 50 Hz; 115 V AC / 60 Hz
- Fuse for 230 V T 315 mA
- Fuse for 115 V T 630 mA
- Power consumption max. 27 VA
Dimensions & Weight
- W x H x D (width x height x depth) 482 x 44 x 237 mm / 19 x 1.73 x 9.33 inch
- Unit weight 4,15 kg / 9,15 lbs
- Shipping weight (incl. packaging) 5,4 kg / 11,9 lbs
